Dungs 217-331A Air Pressure Switch AA-A2-6-5 2" to 20" WC

Dungs 217-331A Air Pressure Switch AA-A2-6-5 2" to 20" WC
Images for general purposes only. Actual may be different than depicted.

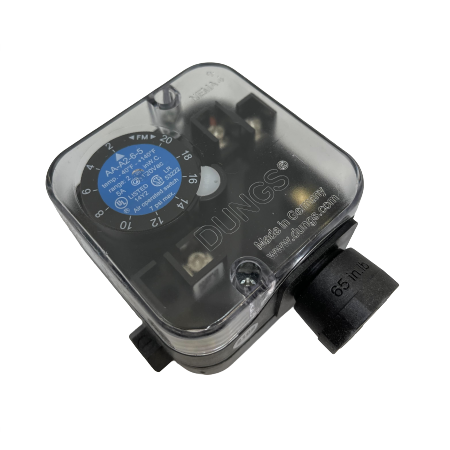

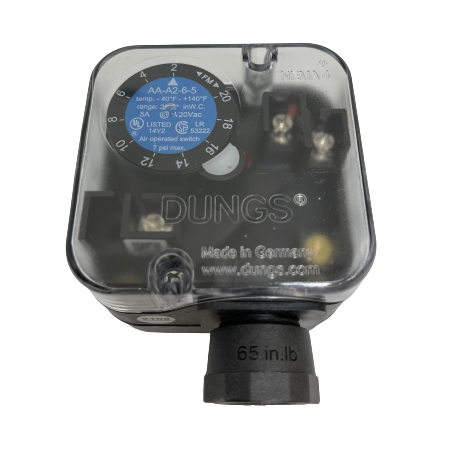

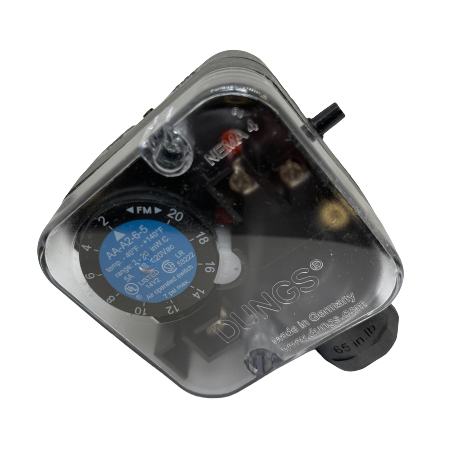

Dungs 217-331A Air Pressure Switch AA-A2-6-5 2" to 20" WC Dungs 266936 Air Pressure Switch Dungs 266936 (217-331A) Air Pressure Switch Dungs 266936 (217-331A) Air Pressure Switch Box

Dungs 217-331A Air Pressure Switch AA-A2-6-5 2" to 20" WC

SKU: 266936
Rating: (2)
Quantity Price Stock
7
Usually Ships from Stock
$88.88     /ea
7
0
$0.00
0
$0.00
0
266936

Genuine OEM Karl Dungs 217-331A Air Pressure Switch AA-A2-6-5 is an excellent choice for industrial and commercial heating applications requiring a pressure switch that can operate in in differential, vacuum, or positive pressure modes.  The Dungs 266936 operates at a 2" - 20" water column (WC) range with an automatic reset.

This switch is an excellent choice in applications requiring monitoring flow of air, natural gas, propane, or other combustible gases required the making and/or breaking of a circuit when the medium pressure changes relative to the set point. Typical applications use the switch to monitor the pressure in firing, ventilation and air-conditioning systems.


Ambient Temperature Rating -40 F to +140 F (-40 C to +60 C)
Enclosure Rating NEMA Type 4
Maximum Operating Pressure 7 PSI (500 mbar)
Material Polycarbonate
Electrical 24V
Electrical Connection Screw terminals via 1/2" NPT conduit connection
Setting Tolerance ±15% switching point deviation referred to set point, adjusted as pressure rises, vertical diaphragm position
Installation Position Multipoised

By Steve

from Wabash IN

Yes, I would recommend this product to a friend or co-worker

5.0 Happy Customer

Customer was happy he got the product quicker and at a lower cost than his previous supplier


By JAY

from DECATUR AL

Yes, I would recommend this product to a friend or co-worker

4.0 Pressure switches for HTM

good price and brand new product always.

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Does this have an LED indicator light?
Asked on Nov 13, 2019 by Albert from Dallas TX USA
1 Answers

Have an answer? Click Here

A:
Yes, the switch has an orange light.  These are also available as accessories for this switch.  Choose either Karl Dungs 231-772 for 120 VAC light mounting set (orange), Karl Dungs 244-156 for 120 VAC light only (for switches with kit 231-772 already installed), or Karl Dungs part 231-774 for 24 VDC/VAC light mounting set (orange).
Replied on Nov 13, 2019 by Ori from Industrial Stores
