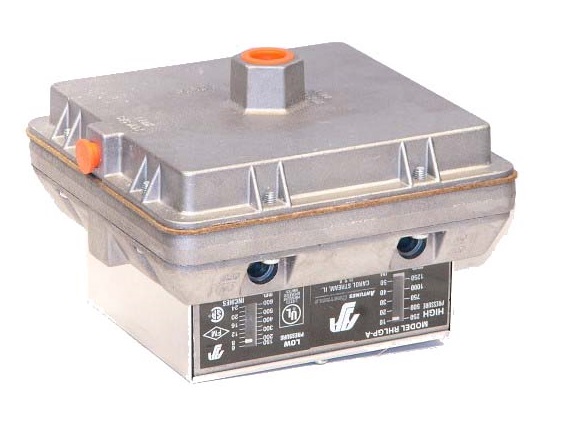

HLGP-A (Reset) & RHLGP-A (Recycle) Series Antunes Controls High-Low and single gas pressure switches monitor gas pressure and cuts off the electrical control circuit when pressure drops below or rises above the desired set point. The high and low gas pressure settings are adjustable and all models are available in reset or recycle type.FEATURESMount Horizontally - Does Not Require Accurate LevelingDouble Switch may be ordered with any combination of High or Low Pressure RangesSetpoint IndicationRugged Die Cast Aluminum HousingMax. surge pressure 10 p.s.i.Max. Ambient temperature 140°F, 60°C.Min. Ambient Temperature -40°F, -40°C. CAPACITY TABLE Ranges Available (All Models)High Gas PressureLow Gas PressureW.C.mmW.C.mm2-16" W.C.50-4001-6" W.C.25-1505-28" W.C.125-7001-35" W.C.25-87510-50" W.C.250-12502-14" W.C.50-350 6-24" W.C.150-600 10-50" W.C.250-1250Model Numbers:HLGP-A High-Low Gas Switch with Reset LeverRHLGP-A High Low Gas Switch Recycle Type
By JOHN
from STROUDSBURGH PA
Yes, I would recommend this product to a friend or co-worker
Hard to find parts were easy to locate and find here. Easy to install. Dependable equipment is why we purchased these for backup inventory on an existing system.
