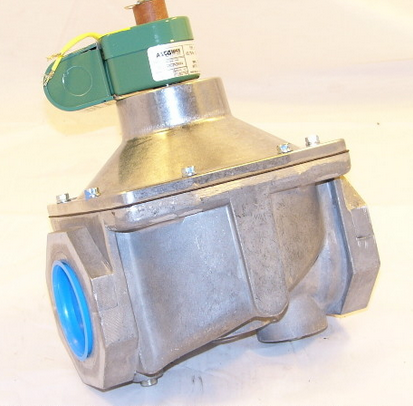

Asco S262SG02N3KK4 Pilot Operated Gas Vent Valve 2-1/2" Normally Open 120V 0-15 PSI

Name: Asco S262SG02N3KK4 Pilot Operated Gas Vent Valve 2-1/2" Normally Open 120V 0-15 PSI
Brand: Asco-General
SKU: S262SG02N3KK4
Price: 1108.41 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Asco S262SG02N3KK4 Pilot Operated Gas Vent Valve 2-1/2" Normally Open 120V 0-15 PSI

SKU: S262SG02N3KK4

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2-3 Weeks Usually Ships 2-3 Weeks	$1,108.41 /ea	Usually Ships 2-3 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Asco Pilot Operated Gas Vent Valve

Asco Series S262 Pilot Operated Gas Vent Valves are used in double block and vent systems and mounted in the vent piping between the shutoff valves. Provides on-off control of fuel gas in vent line. Must be vented to the outside atmosphere. Aluminum body. 3/4" thru 2-1/2" pipe size.

Features:

2-way normally open operation
Die-cast aluminum bodies
Zero differential piloted diaphragm
Valves provided with pipe tap(s) with plug for routine testing
Suitable for ambient temperatures up to 175°F

Pipe Size	2-1/2"
Orifice Size	4-1/2" (114mm)
Cv Flow Factor	90Cv (76.5Kv)
Gas Capacity	4,750,000 btu
Operating Pressure Differential	0-15 PSI (0-1 bar)
Maximum Fluid Temperature	77F (25C)
Voltage	120V @ 60Hz
Wattage	20-Watts
Solenoid Enclosure (Standard)	Type 1 General Purpose Junction Box housing with two 7/8" knockouts
Valve Response Time	Opening & Closing < 1 second

Download Product Information:

Asco Series S262 Pilot Operated Gas Vent Valve Technical Datasheet
