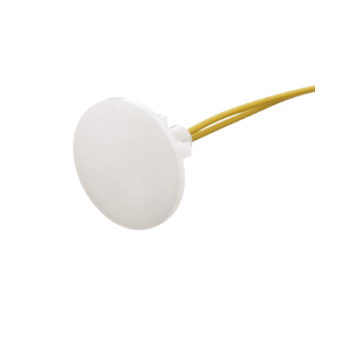

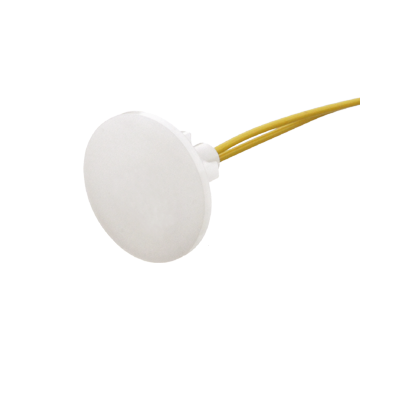

The Automated Logic ALC/10K-2-LPW-15 Low Profile Button Sensor is white in color and includes 15 feet of Plenum-Rated Cable. The sensor uses a 10K-2 Thermistor as its sensing element.

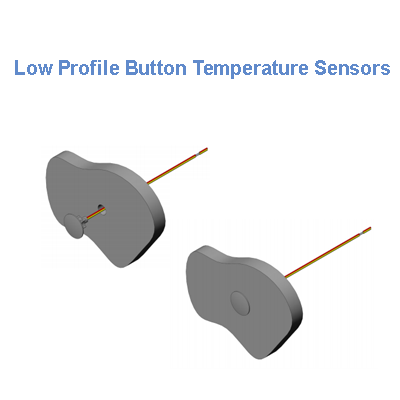

The round button-like Low Profile Temperature Sensor is a perfect choice for your home and commercial spaces. Maintains your wall aesthetic look with its small size only taking up a 7/8" dot on the wall. Easy to mount on a 1/2" hole and a peel-off tape strip secures the sensor's mounting. Also, you can change the color to your liking by using Latex or Oil Base paint.
| Mounting Hole | 1/2" hole, push in plastic sheath with peel off tape strip |
|---|---|
| Enclosure Material and Ratings | Plastic NEMA 1 UL94 |
| Environmental Operating Range (Temperature) | -4F to 167F (-20C to 75C) |
| Environmental Operating Range (Humidity) | 0 to 100% RH non-condensing |
| Wiring | One pair of 22 AWG wires |
| Wire Insulation | 15 Feet |
| Sensitivity | Non-Linear |
| Temperature Output | Resistance |
| Sensor Type | Thermistor |
