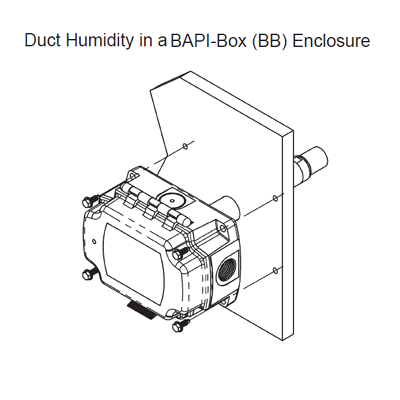

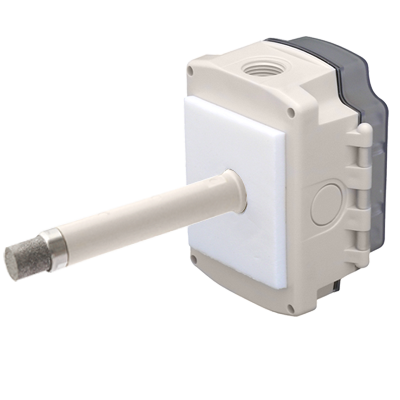

The Automated Logic ALC/H200-D-BB Duct Humidity Sensor comes in ±2% Humidity Transmitter with Interchangeable Output of 0 to 5 V or 4 to 20 mA. The unit is in a BAPI-Box enclosure made of UV-resistant polycarbonate.
All the Duct Humidity Sensors are designed to be durable with an IP66 rating on enclosures. Available in BAPI-Box and BAPI-Box Crossover Enclosures, both feature watertight packaging and are made of UV-resistant polycarbonate. The probe insertion hole is sealed by a closed-cell foam and mounting tabs are provided for easy installation.
A Humidity Only or Temperature/Humidity Combination is available. The Humidity Transmitters are made to be dependable and provide accurate readings for it is calibrated at 10 points from 10 to 90% RH for accuracy, eliminating field calibration.
| Power & Consumption | 10 to 35 VDC, 22 mA maximum |
|---|---|
| Enclosure Rating | IP66 NEMA 4X |
| Enclosure Material | UV-Resistant Polycarbonate UL94 V-0 |
| Environmental Operation Range (Temperature) | -40F to 158F (-40C to 70C) |
| Environmental Operation Range (Humidity) | 0% to 100% RH |
| Humidity Sensor | Capacitive +/- 2% (10 to 90% RH @ 23C) |
