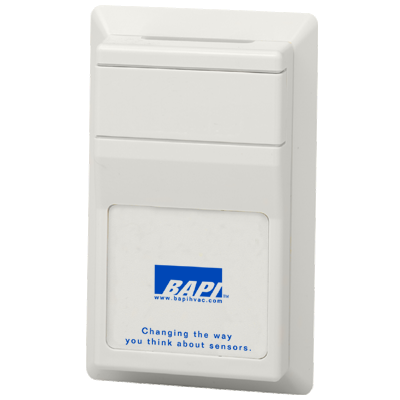

Delta Style Room Humidity (%RH) Transmitter with optional Temperature Sensor
The Delta Style units are available as humidity only or temp/humidity sensors. They feature an optional LCD with a user adjustable toggle rate between humidity and temperature display. The humidity is available as ±2% or ±3% RH with an output of 4-20mA, 0-5V or 0-10V.
%RH Calibration Adjustment | +/- 5% POT |
---|---|
Wiring | 2 to 3 pair of 16 to 22 AWG |
Mounting | Drywall Mount screws provided |
Environmental Operation Range (Temperature) | 32F to 122F (0 to 50C) |
Environmental Operation Range (Humidity) | 5% to 95% non-condensing |
Material & Rating | ABS Plastic, UL94 HB |
Agency | RoHS and CE |
Humidity | Capacitive Type +/- 2% RH @ 25C (77F), 0 to 90%RH |
Power & Consumption | 10 to 35 VDC, 22 mA max. DC |
