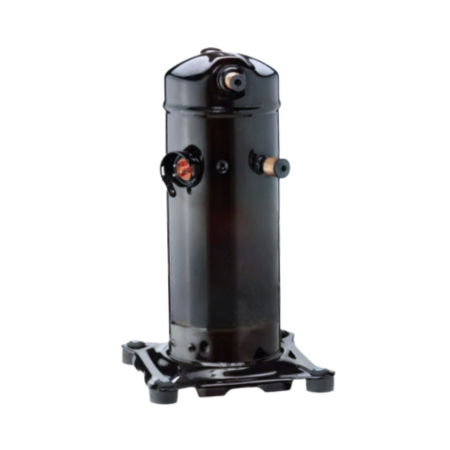

The Bard HVAC 8000-933BX (ZR72KCE-TFD-930) is a 6-ton, 3-phase scroll compressor with R22 refrigerant. It operates at 6Hp, 380-415/460V, and 50/60 Hz electrical ratings.
The scroll compressor handles 73,500 btu/hr capacity and ensures precise temperature control in the system. This device features a 7/8" suction and a 1/2" discharge line connection.
The 8000-933BX is a direct replacement for 8000-933. Commonly found in ICP, York, Carrier, Coleman, and Goodman air conditioning systems. Fit securely on a 7-1/2" x 7-1/2" mounting base.
| Number of Phase | 3-Phase |
|---|---|
| Electrical Ratings | 6Hp, 380-415/460V, 50/60 Hz |
| Rated Load Current | 10A |
| Maximum Continuous Current | 14A |
| Locked Rotor Current | 75A |
| Refrigerant | R22 |
| Suction Line Size | 7/8" ODF Suction |
| Discharge Line Size | 1/2" ODF Discharge |
| Capacity | 73,500 btu/hr |
