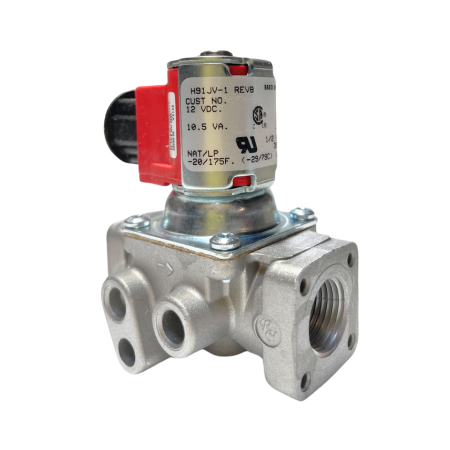

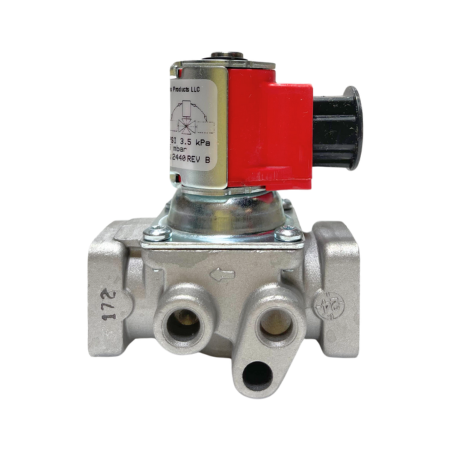

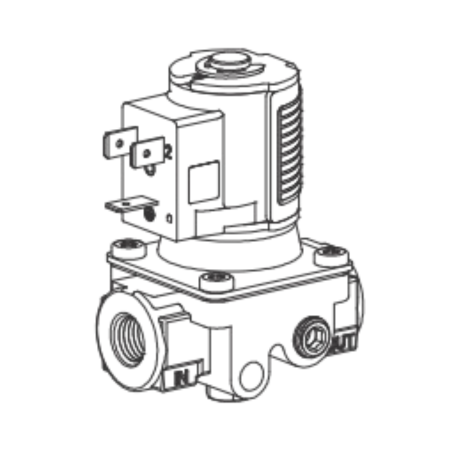

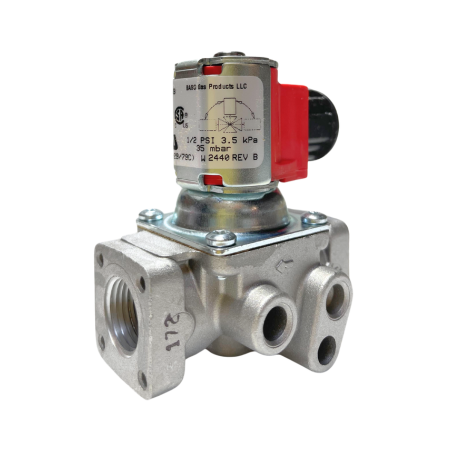

Baso H91JV-1C REVB Automatic Gas Valve 12VDC 1/2" NPT 0.5 psi

Name: Baso H91JV-1C REVB Automatic Gas Valve 12VDC 1/2" NPT 0.5 psi
Brand: Baso
SKU: H91JV-1C REVB
Price: 149.28 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Baso H91JV-1C REVB Automatic Gas Valve 12VDC 1/2" NPT 0.5 psi

SKU: H91JV-1C REVB

Tariff HS Code: 8481809005

Brand:

Rating:

Quantity	Price	Stock
3 Usually Ships 2 - 4 Weeks	$149.28 /ea	3

Add to Cart

Add to Wishlist

The H91JV-1C REVB found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Baso H91JV-1 BasoTrol Automatic Gas Valve 12VDC 0.5 A	H91JV-1 Brand Baso

Add to Cart

Add to Wishlist

The Baso H91JV-1C REVB is an automatic gas valve with an aluminum body, operating at a 12VDC power rating. It is AGA Certified, CSA Listed, and UL Recognized.

This gas valve features a 1/2" NPT inlet/outlet and 1/4" tab terminals. It can handle pressures up to 0.5 psi and has a capacity of 240,000 BTU/hr with a 1" pressure drop.

This device is an electrically operated shut-off safety valve that automatically opens and closes in response to demand signals from a controlling device like a thermostat.

The H91JV-1C REVB is a direct cross-reference to the Ray-Tech 74033 and Baldor SE0071A00 gas valves. Suitable for use with natural or LP gas in gas-fired appliances such as:

Boilers
Generators
Commercial Cooking Equipment
Wall Furnaces

Heater
Commercial Dryers
Rooftop Makeup Units
Water Heaters

Wattage	70kW
Maximum Ambient Temperature	-20 to 175°F (-29 to 79°C)
Gas Type	Natural and Liquified Petroleum (LP) Gas
Maximum Operating Pressure	0.5 psi (35 mbar [3.5 kPa])
Terminals Size	1/4" Tab
Capacity	240,000 btu/hr at 1” Pressure Drop
Electrical Rating	12VDC, 10.5VA, 0.875A
Body Material	Aluminum
Approvals	AGA Certified, CSA Listed, and UL Recognized
Inlet/Outlet Size	1/2" NPT

Download Product Information:

Baso H91-Rev B Series BASOTROL Automatic Gas Valve Catalog

Baso H91-Rev B Series Shutoff Gas Valve Installation Instruction
