Bell & Gossett 113076 Air Vent 3/4" x 3/8" NPT 150 PSI Maximum 107A

Bell & Gossett 113076 Air Vent 3/4" x 3/8" NPT 150 PSI Maximum 107A
Images for general purposes only. Actual may be different than depicted.
Bell & Gossett 113076 Air Vent 3/4" x 3/8" NPT 150 PSI Maximum 107A Bell & Gossett 113076 High Capacity Air Vent Bell & Gossett 113076 Air Vent 150 PSI Maximum

Bell & Gossett 113076 Air Vent 3/4" x 3/8" NPT 150 PSI Maximum 107A

SKU: 113076
Rating: (1)
Quantity Price Stock
11
Usually Ships 1 - 2 Weeks
$1,109.30     /ea
11
0
$0.00
0
$0.00
0
113076

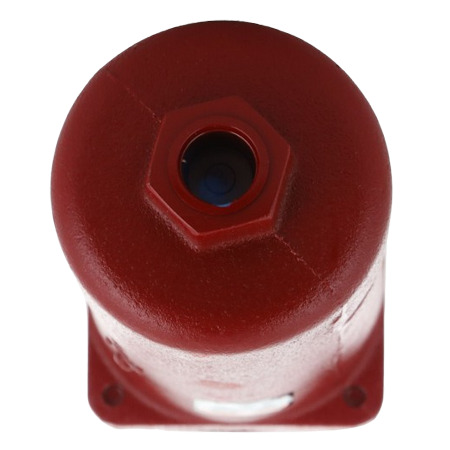

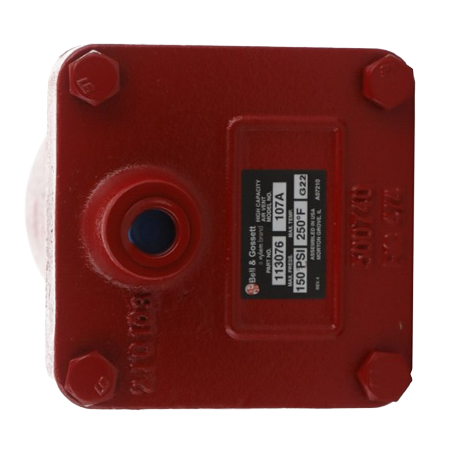

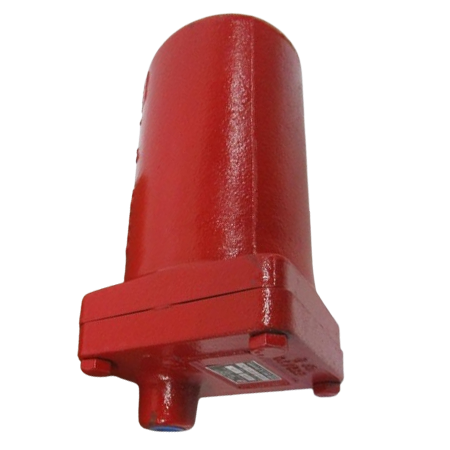

The 113076 (107A) is an air vent that has a 3/4" NPT inlet and a 3/8" NPT outlet connection size, with a cast iron body construction.  It operates at a maximum pressure of 150 psi and can withstand temperatures up to 250°F.

The high-capacity air vent is suitable for systems that use water or ethylene glycol as the fluid medium.  The unit is used to purge free air from liquid systems and provide positive shutoff to prevent liquid loss.  It features a float-actuated operation for instant venting and internal components made of stainless steel, brass, and EPDM.

The 113076 is easy to install with a straight body pattern and non-ferrous internals that provide excellent durability during operation.  The 118855 Lever/Button & Gasket accessory is also available.
Inlet Connection Size 3/4" NPT
Outlet Connection Size 3/8" NPT
Maximum Operating Pressure 150 PSI
Maximum Operating Temperature 250°F
Fluid Water or Ethylene Glycol
Body Material Cast Iron
Color Red
