Bray Valves 70E301-113G0536/K Electric Actuator 120VAC 50/60 Hz 3000 lb-in

Name: Bray Valves 70E301-113G0536/K Electric Actuator 120VAC 50/60 Hz 3000 lb-in
Brand: Bray
SKU: 70E301-113G0536/K
Price: 3853.72 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Bray Valves 70E301-113G0536/K Electric Actuator 120VAC 50/60 Hz 3000 lb-in

SKU: 70E301-113G0536/K

Brand:

Rating:

Quantity	Price	Stock
1 Usually Ships 2 - 4 Weeks	$3,853.72 /ea	1

Add to Cart

Add to Wishlist

The 70E301-113G0536/K found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Bray Valves 70-0201-113A0-536B Electric Actuator 120V 2-Position 30-Seconds	70-0201-113A0-536B Brand Bray

Add to Cart

Add to Wishlist

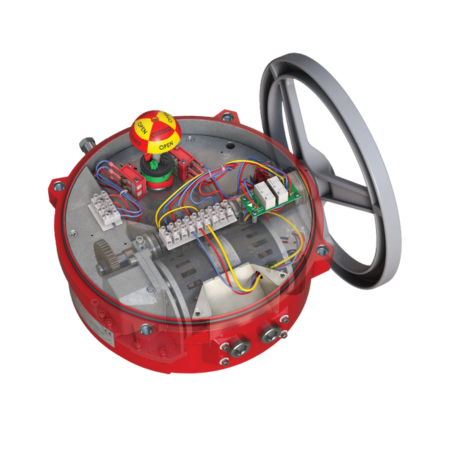

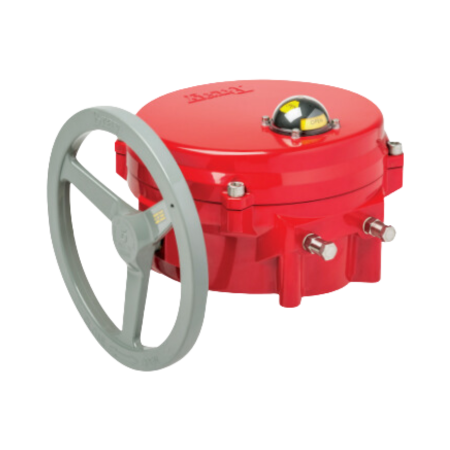

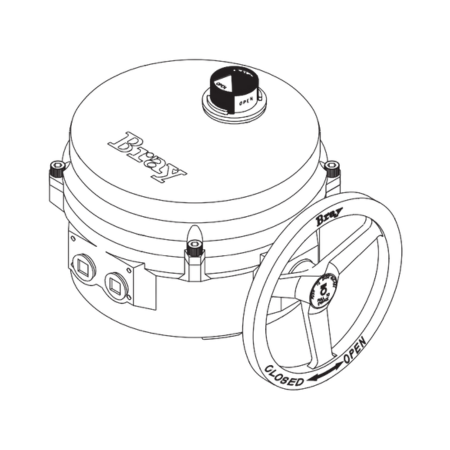

The Bray 70E301-113G0536/K is a Servo NXT modulating electric actuator with die-cast aluminum housing. This device operates at 120VAC and 50/60 Hz, delivering a torque of 3000 lb-in. It is UL, CSA, and CE Approved.

Features

O-Ring Seal
Conduit Entries
Handwheel Manual Override
Extremely Low Profile Actuator
High-Visibility Position Indicator
Mechanical Travel Stop Bolts
Captive Cover Bolts

The 70E301-113G0536/K directly replaces the 700301-113G0536/K and 70-0201-113A0-536B actuators. Suitable for use on valves for chillers, boilers, cooling towers, heat exchangers, and other outdoor applications.

Control Signal	Modulating
Speed	30 Seconds
Voltage	120VAC
Output Torque	3000 lb-in
Frequency	50/60 Hz
Valve Compatibility	Quarter Turn Valve
Enclosure Rating	NEMA 4
Trim	Standard Bray Red
Actuator Style	Imperial, Servo NXT
Temperature Range	-20 to 150°F (-29 to 65°C)

Download Product Information:

Bray Series 70 Electric Actuator Quick Start Guide

Bray Series 70 Electric Actuator Technical Sales Manual

Bray Series 70 Electric Actuator Installation, Operation, & Maintenance Manual
