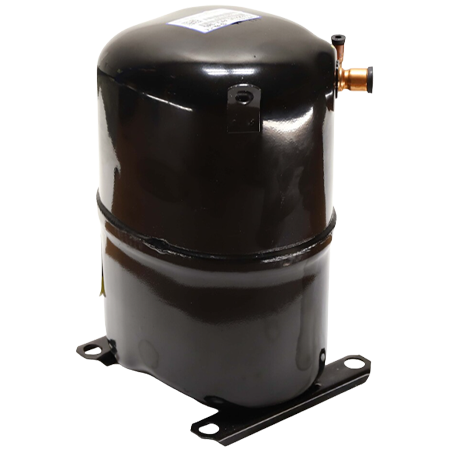

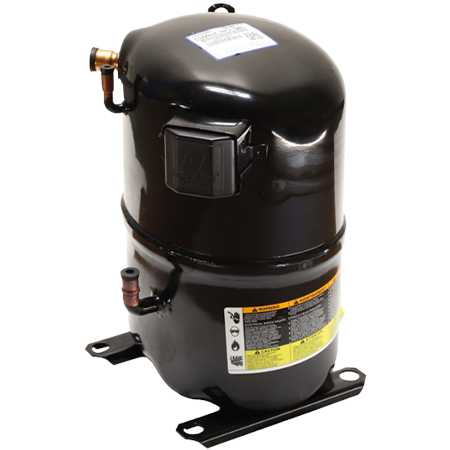

Copeland Compressor CS27K6E-PFV-945 Compressor 208-230V 1-Phase 27,000Btu R-404A

Copeland Compressor CS27K6E-PFV-945 Compressor 208-230V 1-Phase 27,000Btu R-404A
Images for general purposes only. Actual may be different than depicted.
Copeland Compressor CS27K6E-PFV-945 Compressor 208-230V 1-Phase 27,000Btu R-404A Copeland Compressor CS27K6E-PFV-945 Compressor 208 to 230V Copeland Compressor CS27K6E-PFV-945 Compressor Medium & High Temperature

Copeland Compressor CS27K6E-PFV-945 Compressor 208-230V 1-Phase 27,000Btu R-404A

SKU: CS27K6E-PFV-945
Rating: (1)
Quantity Price Stock
3
Usually Ships 2 - 4 Weeks
$5,397.96     /ea
3
Add to Cart
Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
CS27K6E-PFV-945
The CS27K6E-PFV-945 is a hermetic compressor that has an electrical rating of 208 to 230V and 60 Hz. It has a 3/4" stub suction and 1/2" stub discharge connection size with up to 27,000 BTU cooling capacity.

The single-phase compressor is suitable for R-134a, R-22, R-404A, and R-507 refrigerants in medium & high-temperature applications.  The unit features a compact size ideal for small space systems.  It is also designed with internal inherent protection that prevents severe damage to the system.

Check out the available parts:

Accessories Replacement Parts
085-0160-00 3-Phase Control Line Monitor 527-0044-08 Motor Spacer Assembly
918-0088-00 Crankcase Heater 240/265V 40/49W 914-0006-03 Motor Start Capacitor 189-227MFD 330V
940-0001-64 Potential Relay 914-0037-18 Motor Start Capacitor 40MFD 440V
998-E022-01 POE Oil 1-Gallon 032-0463-00 Heater Retainer
918-0088-01 Crankcase Heater 527-0044-00 Mounting Spacer Assembly
998-AB52-01 ALKYLBENZENE Oil - Gallon

The CS27K6E-PFV-945 is quick and easy to install with flag terminal electrical connections and a permanent split capacitor motor.
Frequency 60 Hz
Suction Connection Size 3/4" Stub
Discharge Connection Size 1/2" Stun
Cooling Capacity 27,000 BTU
Number of Phases Singel-Phase
Application Medium and High Temperatures
Refrigerants R-134a, R-22, R-404A, and R-507
Motor Type Permanent Split Capacitor
Cooling Efficiency 9.4 EER
Voltage 208 to 230V
