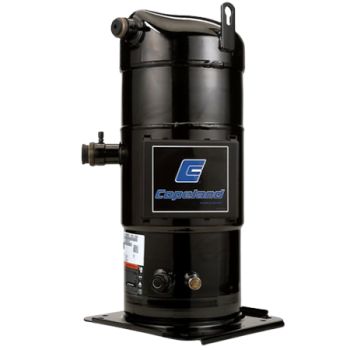

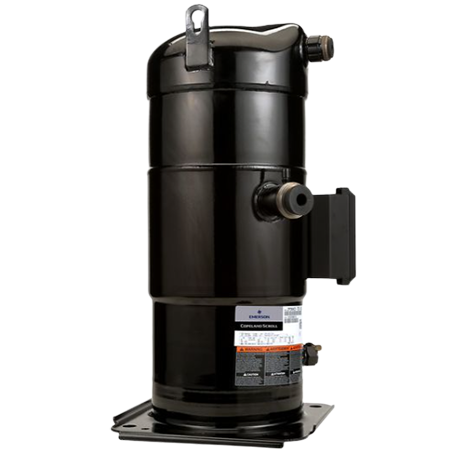

The ZR250KCE-TE5-965 is a scroll compressor that has a power rating of 20 HP, 200 to 230V, 60 Hz, and 3500 RPM motor speed. It has a 1-3/8" stub discharge and 1-5/8" stub suction connection size with 250,000 BTUH cooling capacity.
The three-phase scroll compressor is suitable for R-22, R407C, and R134a refrigerants in high temperatures. The unit has up to 11.5 EER cooling efficiency which provides excellent performance in air conditioning applications.
Check out the available accessories:
| Part No. | Description | Part No. | Description |
| 020-0028-03 | Nonstick Seal Stub to Rotolock | 962-0001-03 | Crankcase Heater Junction Box |
| 020-0941-00 | Nonstick Seal Stub To Rotolock - O-Ring Seal | 970-0021-00 | Sight Glass Kit |
| 510-0370-00 | Discharge 1/4" Schrader Fittng | 971-0064-05 | Emerson Coresense |
| 527-0175-02 | Mounting Spacer Assembly | 971-0065-04 | Protector Kit 24V Module |
| 918-0056-04 | Crankcase Heater 240V 120W | 998-0034-12 | Rotalock to Stub Tube Adapter Kit |
| 918-0056-05 | Crankcase Heater 480V 120W | 998-0510-46 | Service Valve Kit 1-3/8" |
| 918-0056-06 | Crankcase Heater 120V 120W | 998-0510-68 | Service Valve Kit 1-5/8" |
| 918-0056-07 | Crankcase Heater 575V 120W | 998-0520-00 | 120V Motor Protector |
| 921-0223-00 | Connector Block Kit | 998-0520-04 | 24V Motor Protector |
| 934-0002-00 | Rotolock to Odf Adaptor | 005-1069-02 | Terminal Box Cover |
| 934-0002-04 | Adapter Fitting Kit | 062-0439-00 | Terminal Box |
| 529-0102-00 | Low Voltage Control Harness |
| Frequency | 60 Hz |
|---|---|
| Horsepower | 20 HP |
| Motor Speed | 3500 RPM |
| Discharge Connection Size | 1-3/8" Stub |
| Suction Connection Size | 1-5/8" Stub |
| Cooling Capacity | 250,000 BTUH |
| Refrigerants | R-22, R407C, and R134a |
| Application | High Temperature Air Conditioning |
| Cooling Efficiency | 11.5 EER |
| Number of Phases | Three-Phase |
Download Product Information:
Copeland Compressor ZR250KCE-TE5-965 Scroll Compressor Brochure
Copeland Compressor ZR250KCE-TE5-965 Scroll Compressor Bulletin
Copeland Compressor ZR250KCE-TE5-965 Scroll Compressor Dimensions
Copeland Compressor ZR250KCE-TE5-965 Scroll Compressor Nomenclature
Copeland Compressor ZR250KCE-TE5-965 Scroll Compressor Technical Datasheet
