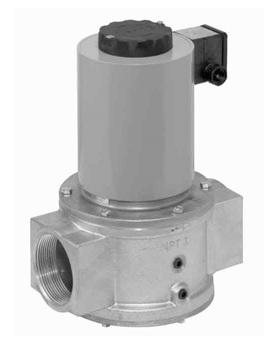

The Karl Dungs 217-439 MVD/6 is an normally closed automatic safety shutoff valve. The dungs gas valve has a 1-1/2" threaded female connection and is CSA, UL, and FM approved.
Suitable for commercial and industrial process heating applications, the MVD/6 can operate with natural gas, propane, butane, air and other inert gases.
The 217-439 MVD/6 operates in application of up to 7 PSI with a fast opening and fast closing valve.
| Maximum Operating Pressure | MVD - 7 PSI (500 mbar) [5 PSI @ CSA |
|---|---|
| Enclosure Rating | NEMA Type 12 (.../602 Series) NEMA Type 4 (.../604 Series) |
| Electrical Connection | Screw Terminals with 1/2" NPT conduit connection |
| Operating Time | 100% duty cycle |
| Ambient Temperature Rating | -20 °F to +120 °F (-30 °C to +50°C) |
