Elsie Manufacturing B165-SHORT HOOK Fusible Link with Shorthook 165F

Elsie Manufacturing B165-SHORT HOOK Fusible Link with Shorthook 165F
Images for general purposes only. Actual may be different than depicted.
Elsie Manufacturing B165-SHORT HOOK Fusible Link with Shorthook 165F Elsie Manufacturing B165-SHORT HOOK Fusible Link with Shorthook 165°F Elsie Manufacturing B165-SHORT HOOK Fusible Link with Shorthook 100°F Maximum Ambient Temperature

Elsie Manufacturing B165-SHORT HOOK Fusible Link with Shorthook 165F

SKU: B165-SHORT HOOK
Rating:
Quantity Price Stock
26
Usually Ships 1 - 2 Weeks
$2.96     /ea
26
0
$0.00
0
$0.00
0
B165-SHORT HOOK

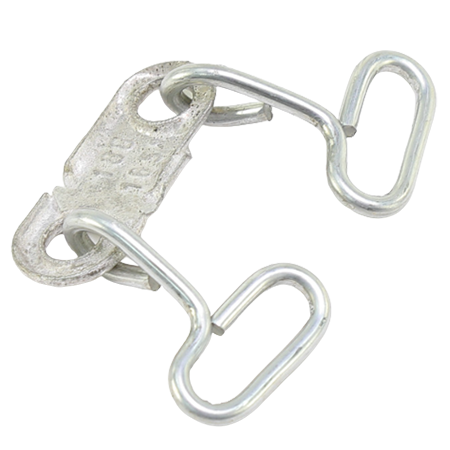

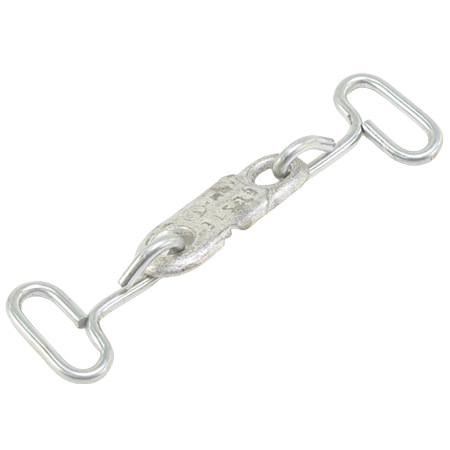

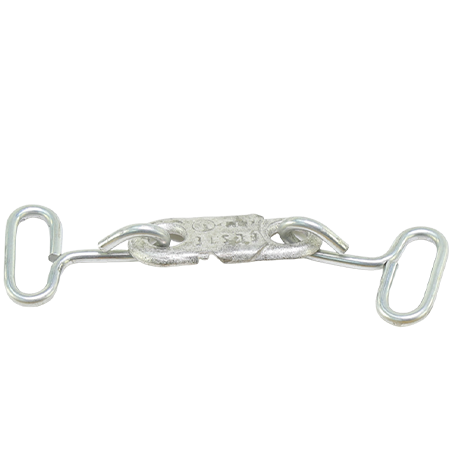

The B165-SHORT HOOK is a fusible link with two short hooks that measure 1.5" in length, 0.563" wide, and 0.938" between the centers.   The unit can withstand up to 165°F (74°C) temperatures.  UL and FM-listed.

The thermal release fire protection fusible link is suitable for heating, ventilating, air conditioning, and refrigeration applications.  It is constructed with with steel stamping and Bismuth alloy solder providing excellent durability.

The SHORT HOOK hook and  B16 fusible link replacement part are also available.
Fusible Link Rating 165°F (74°C)
Maximum Ambient Temperature 100°F (38°C)
Stamping Material Steel
Solder Material Bismuth Alloy
Loading 1 to 10 lbs
Approval UL and FM listed
Distance Between Center 0.938"

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Your picture for the Elsie B165-short hook fusible link only shows the hook, is it the complete fusible link with 2 hooks on it?
Asked on Nov 14, 2022 by Don from Sioux Falls, SD
1 Answers

Have an answer? Click Here

A:
The photo on the product page is used for general reference.
The Elsie Manufacturing B165-SHORT HOOK is the B165 Fusible Link with 2 Short Hooks on each side.
Replied on Nov 15, 2022 by Brian from Industrial Stores
