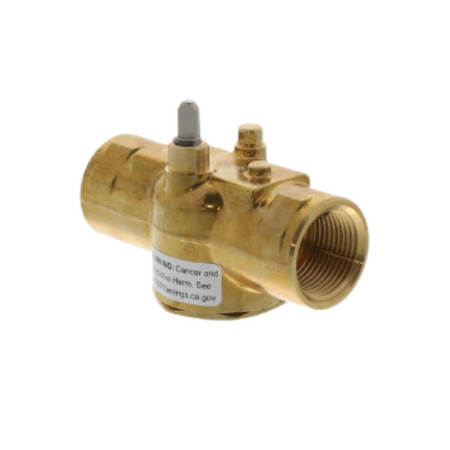

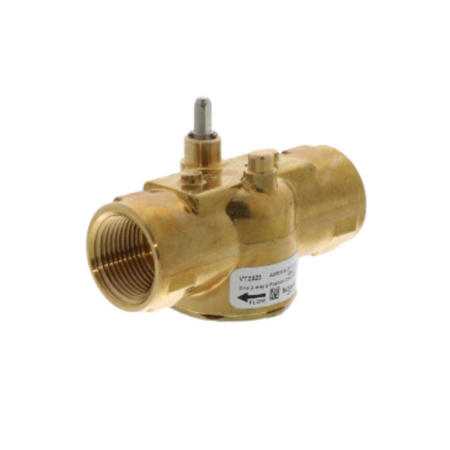

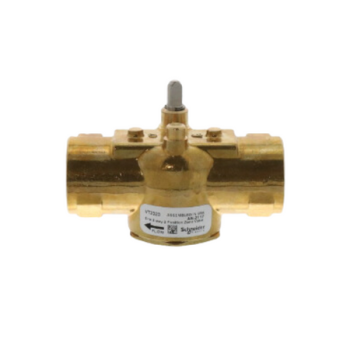

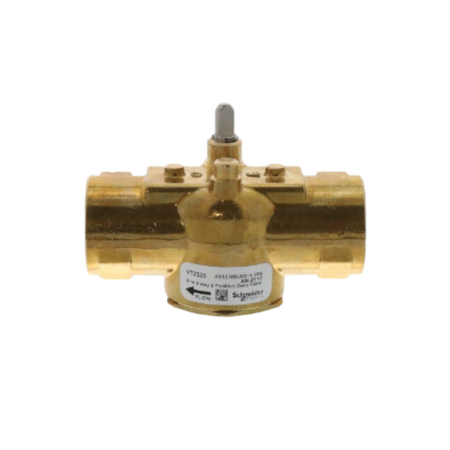

The Erie® PopTop™ VT2323 is a two-way two-position zone valve for general service. This device has a brass body with a 3/4" NPT connection and 3.5 Cv flow capacity.
Features:
The VT Series is suitable for hot and chilled water control in terminal unit applications. It is compatible with VS2322G14A020 and VT2323G13A020 models.
| Trim Material | Brass |
|---|---|
| Product Series | VT2 |
| Product Range | Erie PopTop |
| Temperature Range | 32°F to 200°F (Fluid) @ 104°F (Ambient) |
| Control Media | Glycol 25 to 50% and Water |
| Flow Capacity | 3.5 Cv (3 Kv) |
| Application | Hydronic Heating and Cooling |
| Maximum Pressure | 50 psi |
| Body Configuration | 2-Way |
| Connection Szie | 3/4" NPT |
