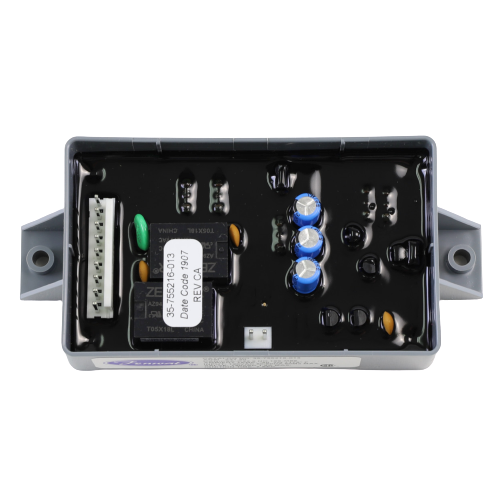

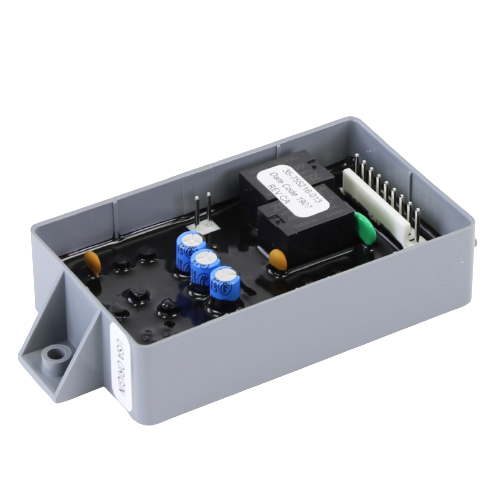

Fenwal 35-755216-013 Microprocessor-Based Hot Surface Ignition Control for 120 VAC gas-fired appliances under 400K BTU. This is also applicable for commercial cookers, construction heaters, and tube heaters.
Fenwal Series 35-75 are HSI controls with a microprocessor that monitors the heat and flame during heating. The microprocessor helps the HSI control to be more precise during ignition times and purge times. These controls are responsible for the device ignition when continuous heating is needed and must be used with up to 5 Amps ignitor models.
The Fenwal HSI controls do provide a safe start on which it verifies no flame presence before a heat sequence begins. Features a potted design for protection from washdown and vibration. Easy & Fast to install for it has a multi-pin connector.
Safety certifications approved by CSA International to CAN C22.2 #199-M89 and ANSI Z21.20 for Automatic Ignition Systems, including UL1998 software review.
| Flame Sensitivity | 1.0 mA minimum |
|---|---|
| Types of Gas | Manufactured or Natural, LP |
| Ignitor | 120 VAC hot surface ignitors up to 5 A |
| Current Voltage | 100 mA max. @ 120 VAC at 25 C |
| Operating Temperatures | -40 F to +176 F (-40 C to +80 C) |
| Flame Sense Voltage | 50% of line voltage minimum |
Download Product Information:
Fenwal Series 35-75 Microprocessor HSI Control Technical Datasheet
