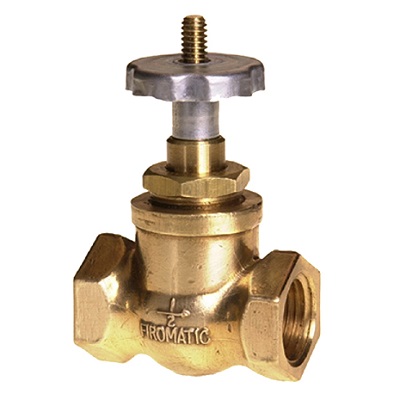

Firomatic B200F Fusible Inline Valve 1/2"

Name: Firomatic B200F Fusible Inline Valve 1/2"
Brand: Firomatic
SKU: B200F
Price: 92.48 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Firomatic B200F Fusible Inline Valve 1/2"

SKU: B200F

UPC: 642415171557 UNSPSC: 40141604

Brand:

Rating:

Quantity	Price	Stock
12 Usually Ships 1 Week	$92.48 /ea	12

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Firomatic B200F Fusible Inline Fire Safety Valve is designed to reduce fire damage by shutting off the flow of oil from the oil tank in the event of a fire. They are required by code in residential oil heating installations in conformance with NFPA 31.

The valve is embossed with an arrow indicating the direction of oil flow. The seal stem uses a double seal washer/o-ring system with high-grade Viton equivalent materials suitable for No. 2 fuel oil and Kerosene. The maximum pressure rating is 10PSI.

The Firomatic B200F Fusible Inline Valve consists of a heavy-duty brass body and has 1/2 x 1/2 inch FPT connection. Alternate model no. is 12130.

Features:

• Fusible valves approved for kerosene and No. 2 fuel oil
• High quality brass design with standard handwheel closure at 165˚F ambient temperature
• All washers and o-rings are made of Viton® equivalent material
• Valves are listed by Underwriters Laboratories for U.S. and Canada, conform to UL 842 standard as a Manual Valve
• Multiple Fire Safety Valves are required by NFPA 31 code and CSA B139-15 on all installations

Frequently Asked Questions:

What is the Firomatic B200F Fusible Inline Valve used for?
The Firomatic B200F is a fire safety valve designed for residential oil heating systems. In the event of a fire, the valve closes to help stop the flow of fuel oil from the storage tank and reduce the potential for additional fire damage.
At what temperature does the Firomatic B200F close?
The B200F is designed to close when the surrounding temperature reaches approximately 165°F.
What fuels can be used with the Firomatic B200F?
The valve is approved for use with No. 2 fuel oil and kerosene.
What is the maximum pressure rating of the Firomatic B200F?
The maximum operating pressure is 10 PSI.
How can the correct oil flow direction be identified?
The brass valve body is embossed with an arrow indicating the required direction of oil flow.
What material is the Firomatic B200F valve body made from?
The B200F uses a heavy-duty brass body designed for durability in oil heating applications.
Is a fusible fire safety valve required on residential oil heating systems?
The provided product information states that fire safety valves are required on applicable oil heating installations under NFPA 31 and CSA B139-15 requirements. Installation requirements should be confirmed against the applicable local code and system design.
Does the B200F also operate as a manual shutoff valve?
Yes. The valve includes a standard handwheel, allowing it to be manually closed in addition to its fusible fire-safety function.
Can multiple Firomatic fire safety valves be required in one installation?
Yes. The supplied product information states that multiple fire safety valves may be required under NFPA 31 and CSA B139-15 depending on the installation.

Connection Size	1/2 x 1/2 inch
Connection Type	FPT
Body Material	Brass

Download Product Information:

Beckett Fusible Inline Valve Datasheet
