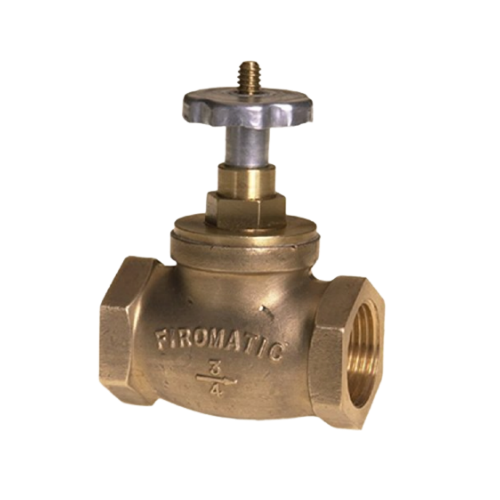

Firomatic B300F (12112) Two-Way Fusible Inline Valve with a 3/4" connection.  Made of Brass material and has standard handwheel closure at 165 F ambient temperature

Fusible Inline Fire Safety Valves are designed to reduce fire damage by shutting off the flow of oil from the oil tank in the event of a fire. They are required by code in residential oil heating installations in conformance with NFPA 31.  All valves are embossed with an arrow indicating the direction of oil flow.  The seal stem uses a double seal washer/o-ring system with high-grade Viton equivalent materials suitable for No. 2 fuel oil and Kerosene.  The maximum pressure rating is 10 PSI.

Valves are listed by Underwriters Laboratories for U.S. and Canada, conform to UL 842 standard as a Manual Valve.

Frequently Asked Questions:

• What is the Firomatic B300F (12112) used for?
  The Firomatic B300F is a fusible inline fire safety valve designed for residential oil heating systems. Its purpose is to help reduce fire damage by automatically shutting off the flow of fuel oil from the storage tank when exposed to excessive heat.

• What size connection does the Firomatic B300F have?
  The Firomatic B300F (12112) features a 3/4-inch connection for installation in compatible fuel oil piping systems.

• What material is the Firomatic B300F made from?
  The valve is manufactured from brass, providing a durable body suitable for fuel oil and kerosene applications.

• At what temperature does the Firomatic B300F close?
  The Firomatic B300F incorporates a fusible safety mechanism designed to close at an ambient temperature of 165°F.

• Does the Firomatic B300F have a manual shutoff?
  Yes. The valve includes a standard handwheel that allows manual closure in addition to its fusible fire-safety function.

• Is the Firomatic B300F suitable for No. 2 fuel oil?
  Yes. The valve uses a double seal washer and O-ring stem sealing system manufactured from high-grade Viton-equivalent materials suitable for No. 2 fuel oil.

• Can the Firomatic B300F be used with kerosene?
  Yes. Its sealing materials are suitable for both No. 2 fuel oil and kerosene applications.

• What is the maximum pressure rating of the Firomatic B300F?
  The maximum operating pressure rating is 10 PSI.

• Is there a required flow direction for this valve?
  Yes. The valve body is embossed with an arrow indicating the required direction of oil flow. The valve should be installed according to this marked flow direction.

• Why are fusible fire safety valves used in oil heating systems?
  Fusible fire safety valves are designed to stop the flow of oil during a fire condition. By shutting off the fuel supply when exposed to elevated temperature, the valve helps limit the amount of fuel available to feed a fire.

• Is the Firomatic B300F required for residential oil heating installations?
  Fusible fire safety valves are used in residential oil heating installations to meet applicable installation requirements, including installations conforming with NFPA 31.

• Is the Firomatic B300F UL listed?
  Yes. Firomatic fusible inline valves are listed by Underwriters Laboratories for use in the United States and Canada.

• What type of valve is the Firomatic B300F?
  The B300F is a two-way fusible inline fire safety valve with a manual handwheel and an automatic fusible closure mechanism.

• Where is the Firomatic B300F typically installed?
  The valve is typically installed in the fuel oil supply line between an oil storage tank and oil-burning heating equipment, subject to the requirements of the applicable system design and installation code.
