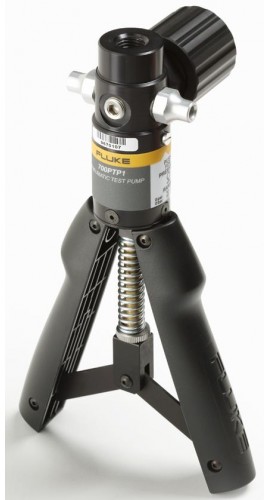

3/8-BSP (ISO228) female parallel thread fitting for the reference gauge or pressure module, 1/8-BSP (ISO228) female parallel thread fitting for The Fluke 700PTP-1 pneumatic test pump is capable of supplying pressures up to 600 psi, 40 bar.

The 700PTP-1 can be directly connected to the reference port consolidating two separate pieces when performing pressure calibration and testing. Designed for use with 700 series pressure modules or test gauges, but can also be used with 717 pressure calibrators. Ideal for calibrating pressure transmitters, pressure switches and pressure gauges up to 600 PSI/40 bar.

• Adjustable stroke length can be set to limit the pressure per stroke
• Pump can be easily cleaned without disassembly
• The vernier can be used as a stand-alone low pressure calibrtion source
• Two pressure ports allowing simultaneous connection:
  • 1/4" NPT female fitting for the reference gauge or pressure module
  • 1/4" NPT female fitting for the unit under test

Includes:

• 1/4" NPT male to 1/4" BSP female
• 1 meer of hose
• 2- 1/8" NPT male quick connects
• 1/8 NPT female to 1/4" BSP female
• Seal Kit
• Instruction sheet

the unit under test.
