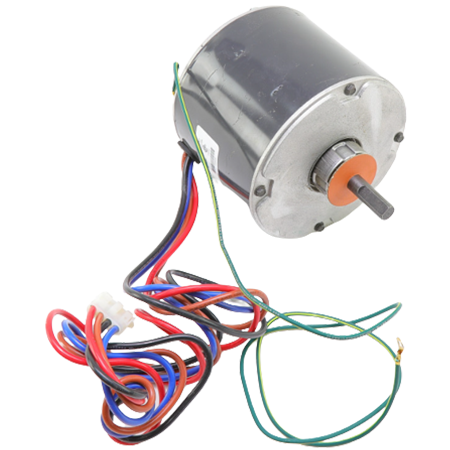

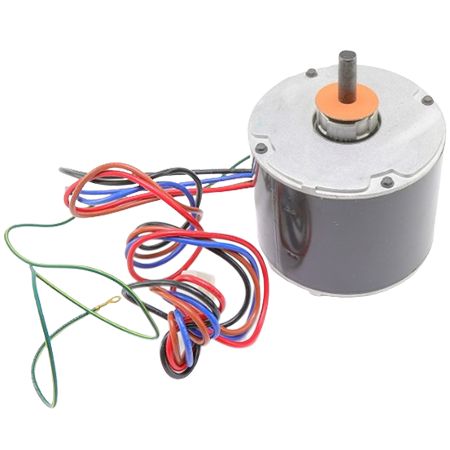

Heil Quaker 1086404 Condenser Motor 1/4 Hp 208/230V 840RPM 2-Speed

Name: Heil Quaker 1086404 Condenser Motor 1/4 Hp 208/230V 840RPM 2-Speed
Brand: Heil-Quaker
SKU: 1086404
Price: 425.21 USD
Availability: OutOfStock
Rating: 5 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

Heil Quaker 1086404 Condenser Motor 1/4 Hp 208/230V 840RPM 2-Speed

SKU: 1086404

Brand:

Rating: (1)

Quantity	Price	Stock
Usually Ships 1 - 2 Weeks Usually Ships 1 - 2 Weeks	$425.21 /ea	Usually Ships 1 - 2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The 1086404 is a single-phase condenser motor that has a power rating of 1/4HP, 208 to 230V, 1.5A, and 60 Hz. It has two-speed types and rotates up to 840 RPM in a clockwise direction.

The thermally protected condenser motor is suitable for air conditioners, central air conditioners, and heat pump applications. The unit has a 1.5" shaft size and is designed with a 48Y frame closed enclosure and sleeve bearing that provides excellent efficiency.

The 1086404 is easy to install and can be band-mounted to the system.

Voltage	208 to 230V
Frequency	60 Hz
Horsepower	1/4HP
Amperage	1.5A
Shaft Size	1.5"
Frame Size	48Y
Rotation Speed	840 RPM
Number of Phases	Single-Phase
Rotation	Clockwise

Write a Review

By DAVID

from Yaphank NY

Yes, I would recommend this product to a friend or co-worker

5.0 Air Conditioner Condensor Motor

Great product, exactly as described by Industrial Stores and works well. Thumbs up to your company. It definitely saved me from going deep into my pockets!!
