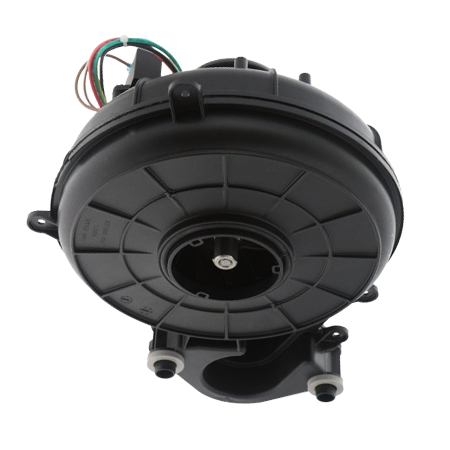

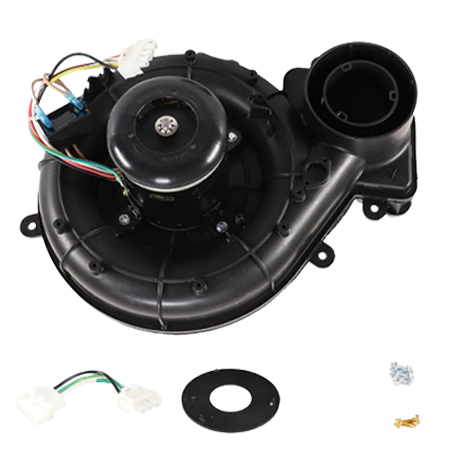

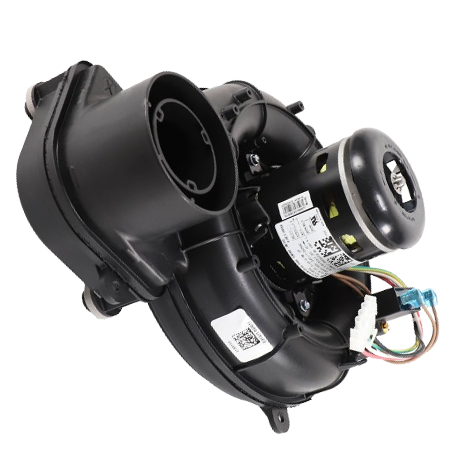

Heil-Quaker 1193419 Inducer Assembly

Heil-Quaker 1193419 Inducer Assembly
Images for general purposes only. Actual may be different than depicted.
Heil-Quaker 1193419 Inducer Assembly Heil-Quaker 1193419 Inducer Assembly 115V Heil-Quaker 1193419 Inducer Assembly 3030 RPM

Heil-Quaker 1193419 Inducer Assembly

SKU: 1193419
Rating:
Quantity Price Stock
26
Usually Ships 1 - 2 Weeks
$205.67     /ea
26
0
$0.00
0
$0.00
0
1193419
The 1193419 is an inducer assembly that operates at 115V, 0.393A, and 60 Hz.  It has 2-speed settings with up to 3030 RPM rotation speed and a class B insulation class that allows optimal performance.  The unit is UL-recognized.

The single-phase inducer assembly is suitable for furnace applications.  The unit is located near the heat exchanger of the furnace that pushes harmful gases that remain in the system.

The 1193419 replaces the following Heil-Quaker Inducer Assembly part numbers:

Voltage 115V
Frequency 60 Hz
Number of Phases Single-Phase
Amperage 0.393A
Rotation Speed 3030 RPM
Number of Speeds 2-Speed
Insulation Class B
Approvals UL-recognized

Q & A: Ask the Questions, share answers

Do you have questions about this product?
