Honeywell 32003532-005 Auxiliary Switch Package

Honeywell 32003532-005 Auxiliary Switch Package
Images for general purposes only. Actual may be different than depicted.

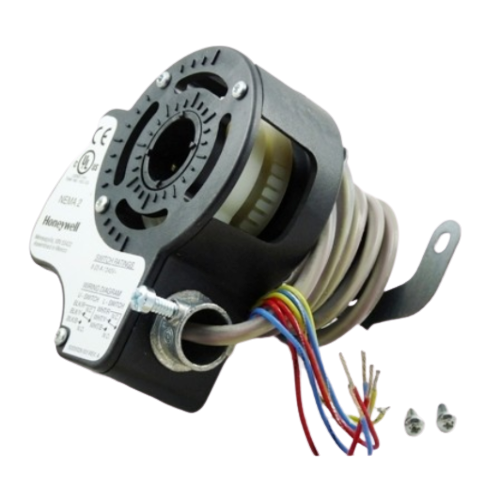

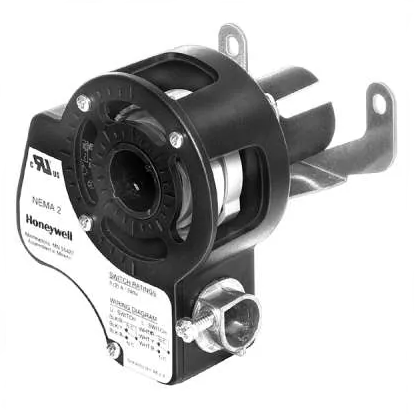

Honeywell 32003532-005 Auxiliary Switch Package Honeywell 32003532-005 Auxillary Dual Switch Assembly Honeywell 32003532-005 Auxiliary Switch Package Dimension Reference

Honeywell 32003532-005 Auxiliary Switch Package

SKU: 32003532-005
Rating:
Quantity Price Stock
11
Usually Ships 1-2 Weeks
$134.92     /ea
11
0
$0.00
0
$0.00
0
32003532-005
Honeywell 32003532-005 is a High-Temperature Dual Switch Assembly for use with Direct Coupled Actuators. Specifically, Series ML4xx5, ML4xx2, ML8xx2, ML8xx5, MS4xx9, and MS8xx9.

This assembly consists of two self-tapping mounting screws, Switch Assembly, 1m, 6-conductor cable, 3/8 in. flexible conduit connector and mounting bracket. The switch assembly is two single-pole, double-throw (SPDT) micro switches with a supply voltage of 240V.

The Dual Auxiliary Switch Package does contain two 360-degree rotary switch cams. These switch cams are used with Direct Coupled Actuators that provide an on/off signal at two adjustable points in the actuator stroke.  This signal can be routed to a controller or used to control equipment external to the actuator (for example, electric reheat coils and fan). This package can be added to an already installed DCA.
Supply Voltage 240 Vac
Operating Temperature Range -40 C to 54 C (-40 F to 130 F)
Cable 18 gauge UL Style 1180 rated 300V, 200 C
Switches Two single-pole, double-throw (spdt) micro switches
Electrical Protection Rating NEMA 2

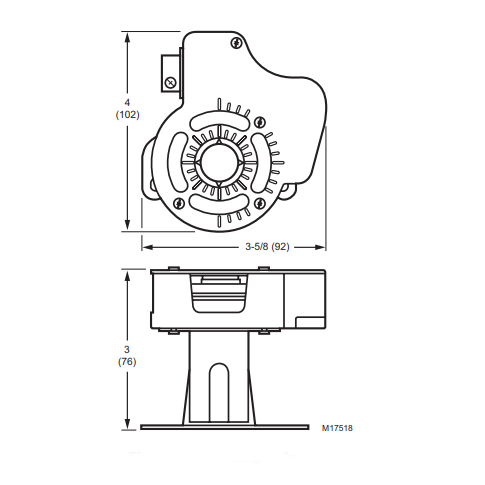

Dimension 3-5/8" wide x 4" deep x 3" high
