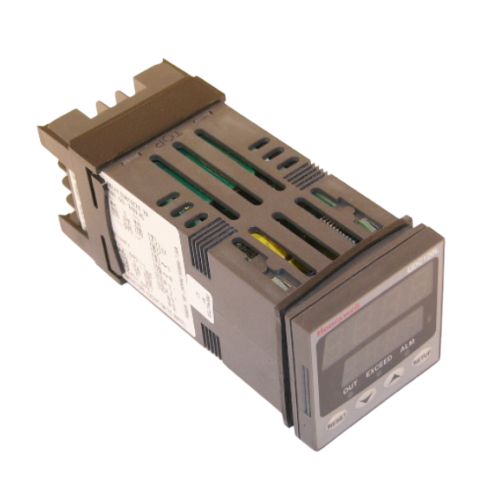

Honeywell DC120L11121000 Universal Digital Controller DC120L-1-1-1-2-1-0-0-0

Honeywell DC120L11121000 Universal Digital Controller DC120L-1-1-1-2-1-0-0-0
Images for general purposes only. Actual may be different than depicted.

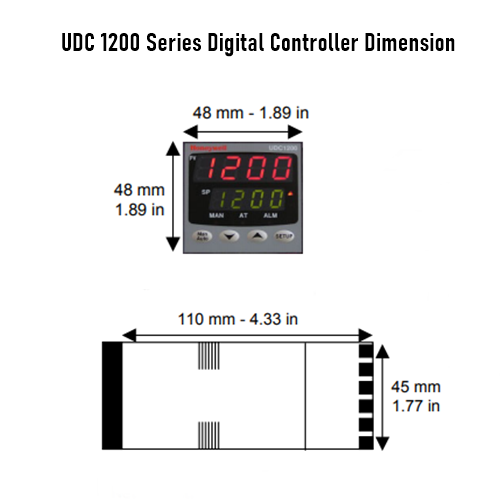

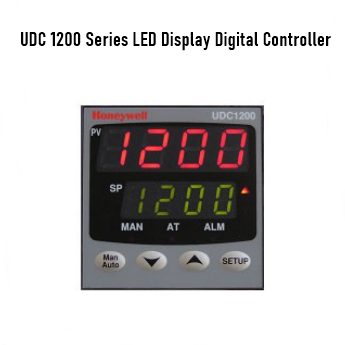

Honeywell DC120L11121000 Universal Digital Controller DC120L-1-1-1-2-1-0-0-0 Honeywell UDC1200 Series Universal Digital Controller LED Display Honeywell DC120L11121000 LED Digital Controller Dimension

Honeywell DC120L11121000 Universal Digital Controller DC120L-1-1-1-2-1-0-0-0

SKU: DC120L11121000
Rating:
Quantity Price Stock
2
2
$886.41     /ea
2
0
$0.00
0
$0.00
0
DC120L11121000
Honeywell DC120L-1-1-1-2-1-0-0-0 is a Universal Micro-Pro Digital Limit Controller with 3-Relay output and 90-264 VAC power supply. This limit model remote alarm reset current setpoint can be tabbed via a digital input.

The UDC 1200 Universal Microprocessor Digital Controllers are designed to easily monitor and regulate temperatures, pressures, and levels. These are suitable for environmental chambers, furnaces, ovens, and packaging machines. Provides a wide range of functionality, readable LED display, and keypad for easy configuration. The device can be mounted in a 1/16 DIN panel cutout.

Features:

  • LED Display
  • Easy Configuration
  • Moisture Resistant Enclosure
  • Compatible to 7 different types of current, voltage linear inputs, RTDs, and thermocouple.
  • Power Supply Range from 90 to 264 VAC at 50/60 HZ
  • Easy upgrade and Output selection
  • Selection for Manual or Automatic Mode

Front Panel Sealing NEMA 3 / IP66
Temperature Stability 0.01 % of span per ºC
Accuracy 0.1 % of span ± 1 LSD
Alarms Maximum number of alarms: 2 soft alarms setpoint + 1 loop alarm
Power Consumption 4 W
Input Signal Failure Fail-safe output value: Achieved when burnout is detected. Value depends on configuration. For thermocouple and mV input detected by any lead break: Upscale burnout. For RTD: Burnout detected by any lead break. Current or voltage input: Burnout set by ope
Approvals UL, FM approval on the UDC1200 Limit Model
Operative Frequency 50 - 60 HZ
Source Resistance 1000 ohms maximum for thermocouple
Approvals UL , FM
