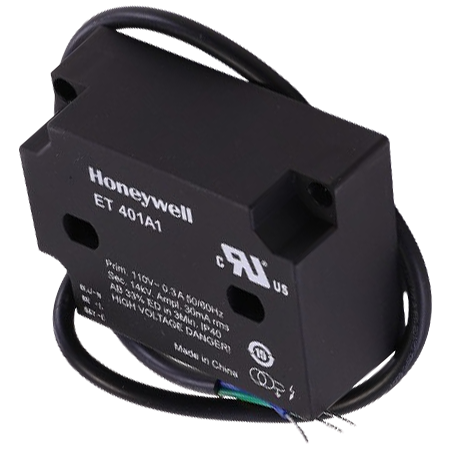

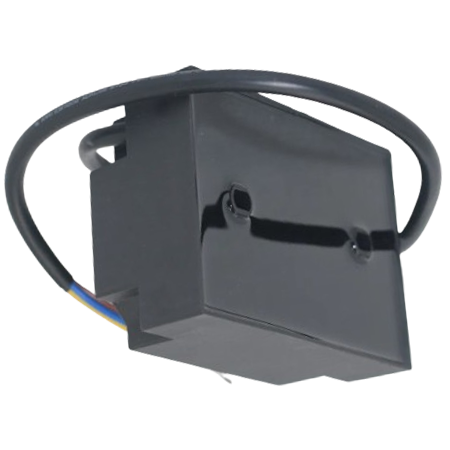

Honeywell ET401A1 Ignition Transformer 110V

Name: Honeywell ET401A1 Ignition Transformer 110V
Brand: Honeywell
SKU: ET401A1
Price: 138.74 USD
Availability: InStock
Rating: 5 (1 reviews)

Images for general purposes only. Actual may be different than depicted.

Honeywell ET401A1 Ignition Transformer 110V

SKU: ET401A1

Tariff HS Code: 8504320000

Brand:

Rating: (1)

Quantity	Price	Stock
11 Usually Ships 1 - 2 Weeks	$138.74 /ea	11

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The ET401A1 is an ignition transformer that has a 110 V, 50/60 Hz, 14 kV output peak voltage, and 14 kHz secondary frequency. It ignites interrupted gas pilot with electrode spacings between 0.12 to 0.20 in. (3 to 5 mm). The unit is UL-recognized.

The single high voltage electrode ignition transformer is suitable for burner control boxes for gas fuel burner applications. It combines low power consumption with a low inrush current allowing excellent operation and generates lowest electromagnetic interferences of all known electronic ignition devices.

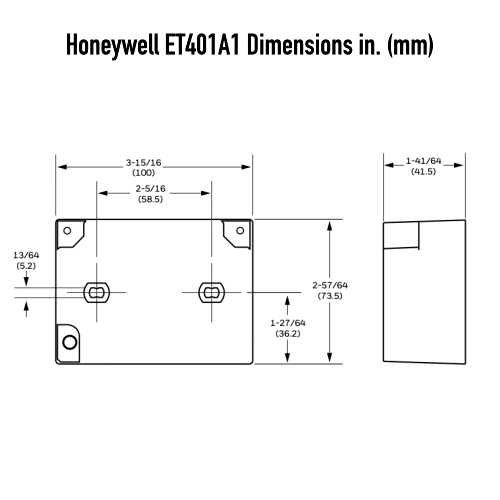

The ET401A1 is easy to install with mounting holes that allows it to be mounted underneath the burner control box.

Power Supply	110 VAC
Ignition Voltage Output	>14 Kv amp
Spark Gap	0.12 to 0.20 in. (3 to 5 mm).
Insulation Standard	IP40
Permissible Ambient	5 to 140°F (-15 to 60°C)
Frequency	50/60 Hz
Secondary Frequency	14.0 kHz
Isolation Voltage	>17kV
Wire Diameter	7 mm
Approvals	UL-recognized

Download Product Information:

Honeywell ET401A1 Ignition Transformer Technical Datasheet
