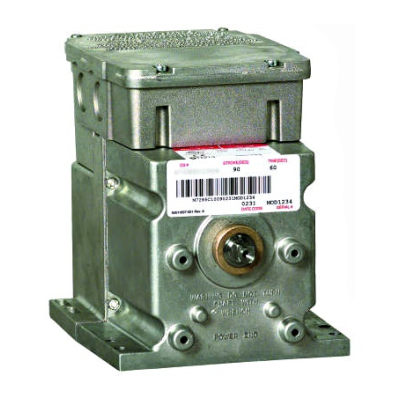

Honeywell M9185D1004 Proportioning Control Motor 24V Spring Return

Name: Honeywell M9185D1004 Proportioning Control Motor 24V Spring Return
Brand: Honeywell
SKU: M9185D1004
Price: 1781.77 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M9185D1004 Proportioning Control Motor 24V Spring Return

SKU: M9185D1004

Brand:

Rating:

Quantity	Price	Stock
14 Usually Ships 1-2 Weeks	$1,781.77 /ea	14

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell M9185D1004 Proportioning Control Motor 24V Spring Return

Series 91 Modutrol IV motors non-spring return modulating proportional control motors are used with controllers that provide a Series 91 output to operate dampers or valves.

Features:

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.

Application	Electric
Dimensions	6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24V
Ambient Temperature Range	-40 F to +150 F (-40 C to +60 C)

Download Product Information:

Honeywell M9185D1004 Proportioning Control Motor Data Sheet

Honeywell M9185D1004 Damper Adjustment Instructions
