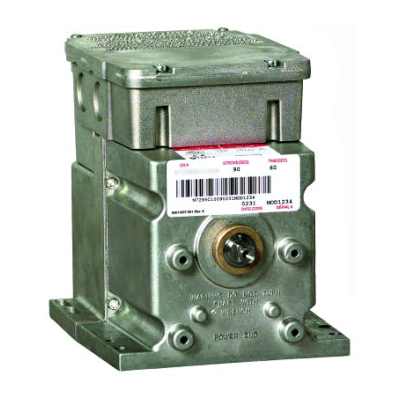

Honeywell M9185E1019 Proportioning Control Motor 24V Spring Return Normally Closed

Name: Honeywell M9185E1019 Proportioning Control Motor 24V Spring Return Normally Closed
Brand: Honeywell
SKU: M9185E1019
Price: 928.22 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Honeywell M9185E1019 Proportioning Control Motor 24V Spring Return Normally Closed

SKU: M9185E1019

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 1-2 Weeks Usually Ships 1-2 Weeks	$928.22 /ea	Usually Ships 1-2 Weeks

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

Honeywell M9185E1019 Proportioning Control Motor 24V Spring Return Normally Closed

Series 91 Modutrol IV motors non-spring return modulating proportional control motors are used with controllers that provide a Series 91 output to operate dampers or valves.

Features:

Integral junction box provides NEMA 3 weather protection if motor is mounted in the upright position.
Motor and circuitry operate from 24 Vac.
Quick-connect terminals are standard--screw terminal adapter is available.
Adapter bracket for matching shaft height of older motors is available.
Motors have field adjustable stroke (90 to 160 degrees).
Integral auxiliary switches are available factory mounted, or can be field added.
All models have dual shafts (slotted and tapped on both ends).
All models have auxiliary switch cams.
Fixed torque throughout the entire voltage range.

Application	Electric
Dimensions	6 7/16 in. high x 5 1/2 in. wide x 8 3/4 in. deep
Frequency	50 Hz; 60 Hz
Supply Voltage	24V
Ambient Temperature Range	-40 F to +150 F (-40 C to +60 C)

Download Product Information:

Honeywell M9185E1019 Proportioning Control Motor Data Sheet

Honeywell M9185E1019 Damper Adjustment Instructions
