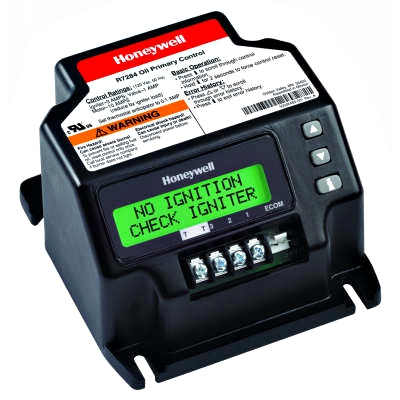

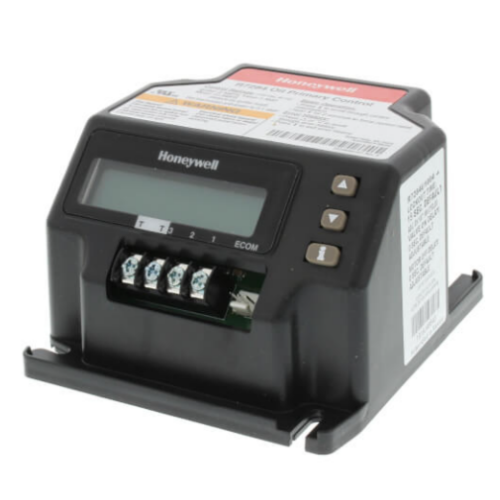

Honeywell R7284U1004 Electronic Oil Primary with LCD Display

Name: Honeywell R7284U1004 Electronic Oil Primary with LCD Display
Brand: Honeywell
SKU: R7284U1004
Price: 125.50 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Honeywell R7284U1004 Electronic Oil Primary with LCD Display

SKU: R7284U1004

Brand:

Rating:

Quantity	Price	Stock
1045 Usually Ships 1-2 Weeks	$125.50 /ea	1045

Buy in Bulk & Save

Quantity	Price
5+	$119.23 /ea

Add to Cart

Add to Wishlist

The R7284U1004 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
White-Rodgers 668-430 Kwik-Sensor Cad Cell Relay Oil Burner Control 2 or 3-Wire 45-Second Timer	668-430 Brand White-Rodgers
White-Rodgers 668-501 Kwik-Sensor Cad Cell Relay Oil Burner Control 2-Wire 30-Second Timer	668-501 Brand White-Rodgers
Honeywell R7184U1004 Electronic Oil Primary Control 15 sec. Lockout	R7184U1004 Brand Honeywell
Honeywell R7184U1012 Electronic Oil Primary with 30 sec. Lock Out	R7184U1012 Brand Honeywell
White-Rodgers 668-401 Kwik-Sensor Cad Cell Relay Oil Burner Control 2-Wire 45-Second Timer	668-401 Brand White-Rodgers

Add to Cart

Add to Wishlist

The R7284U1004 Electronic Oil Primary is a line voltage, safety rated, interrupted and intermittent ignition oil primary control for residential oil fired burners used in boilers, forced air furnaces and water heaters. When used with a cad cell flame sensor this unit operates the oil burner, spark ignite, and an optional oil valve. The control can be used with both hydronic and forced air systems, though some applications may require a delayed valve-on and burner motor-off delay.

Features:

A single part number for nearly all applications helps reduce inventory cost
16 character two line tri-lingual display provides simple programming and diagnostics on select models
Enunciation of status and faults via LED or display
No additional tool to purchase to take advantage of all control features
Models with LEDs monitor igniter and cad cell
Models with display monitor igniter and cad cell, and alerts technician as to exact cause of lockout
Error history and baseline readings provide system performance and trends on models with display
EnviraCOM™ enabled for remote access via EnviraLINK™ (More information available via email at EnviraLINKus@Honeywell.com)
Non volatile memory for settings and diagnostics
Extensive, actionable diagnostics (display models only)
History detailing last 10 events (display models only)
Continuous state and CAD cell readings (display models only)

Specifications:

Settable 15/30 or 45-second safety switch timing
Selectable valve and blower delays

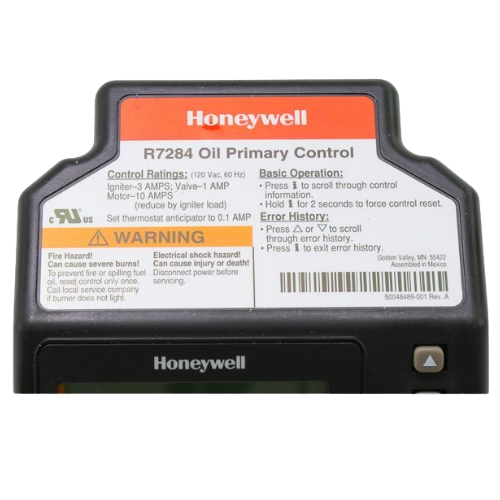

Full load contact ratings- 7.4 A @ 120VAC; 3.7 A @ 240VAC
Locked rotor contact ratings- 44.4 A @120VAC; 22.2 A @ 240VAC
Temperature Range- -40F to 147F

Dimensions	4-5/32 in. long x 4-11/32 in. wide x 2-1/2 in. high
Temperature Range	-40 C to +64 C (-40 F to +147 F)
Timing, Safety Switch	Settable 15, 30 or 45 sec.

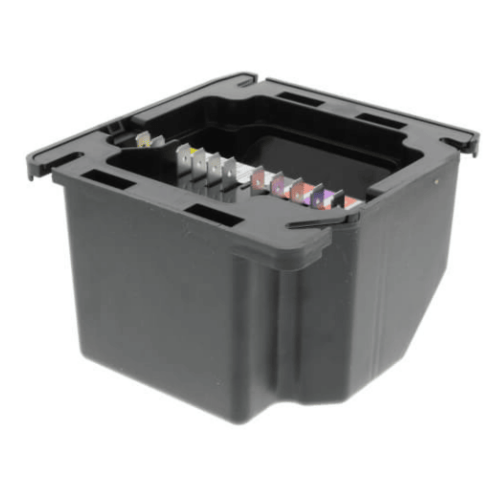

Mounting	Junction box on main burner

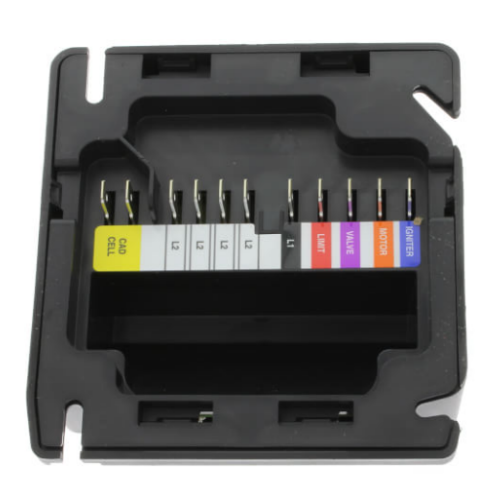

Electrical Connections	Burner motor, oil valve, ignition, cad cell, limit, thermostat, alarm

Download Product Information:

Honeywell R7284U1004 Electronic Oil Primary Instructions
