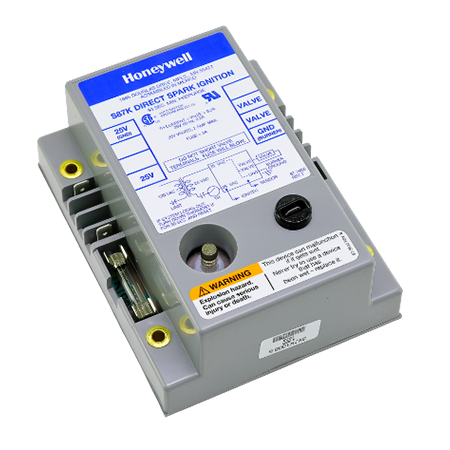

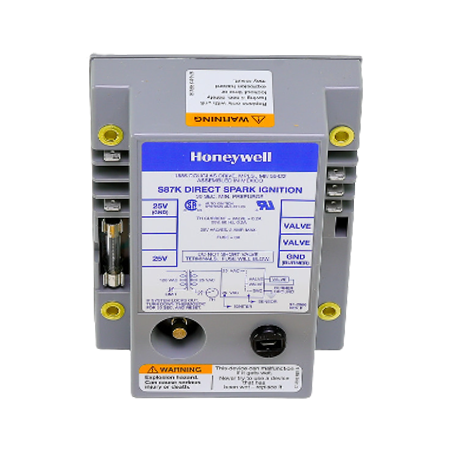

Honeywell S87K1008 DSI Ignition Module - Dual (Two Rod) Direct Spark Ignition

Honeywell S87K1008 DSI Ignition Module - Dual (Two Rod) Direct Spark Ignition
Images for general purposes only. Actual may be different than depicted.
Honeywell S87K1008 DSI Ignition Module - Dual (Two Rod) Direct Spark Ignition

Honeywell S87K1008 DSI Ignition Module - Dual (Two Rod) Direct Spark Ignition

SKU: S87K1008
In Stock 27
Rating:
$254.41 /ea
Qty of 5 - $244.16 /ea
Qty of 10 - $233.93 /ea
0
$0.00
0
$0.00
0
The S87 is a low voltage solid state direct spark ignition control module for gas-fired furnaces boilers and heating appliances. Models are available with or without a prepurge timer. The S87 controls the gas valve monitors the main burner flame and generates a high voltage for spark ignition. The S87K uses separate electrodes to spark ignition and flame sensing. Use with any gas control designed for DSI application that is rated at 2.0 A or less. Includes a 30 second (minimum) delay for use with system prepurge.

Features: External replaceable fuse protects system transformer and temperature controller. Automatic system lockout after trial-for-ignition if malfunction exists or main burner flame fails to ignite. Compact solid state components for accurate long-lasting performance. Convenient remote start procedure after safety shutdown control module can be reset from the remperature controller. Low voltage control circuit reduces wiring costs. Uses flame rectification principle to prove presence of main burner flame false flame signal resulting from short to ground results in safety shutdown.

Following are the Attached files for this product:

Honeywell S87K1008 DSI Ignition Module

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
REPLACED A BAD S87K1008 WITH A NEW ONE. BURNER FIRED UP FOR 5 MINUTES AND SHUT DOWN. TESTED VOLTAGE TO GAS VALVE AND IT IS ONLY GETTING 2 VOLTS NOW. WHAT MAY HAVE HAPPENED? CALLED TECH SUPPORT ON BURNER AND THEY THINK IT WAS A BAD MODULE. HAVE A NEW MODULE TO INSTALL BUT DON'T WANT IT TO BLOW ALSO. ANY IDEAS?
Asked on Oct 24, 2017 by Charles from CLARION, PA.
1 Answers

Have an answer? Click Here

A:
It is always advisable to have experienced and licensed technicians working on Direct Spark Ignition (DSI) systems.  Often a poor ground connection will cause a safety shutdown of a burner.  It is On this page you can find the Honeywell S87 user guide.  Page 10 and 11 have Service and Troubleshooting information that you can share with your technician.
Replied on Oct 24, 2017 by Ori from Industrial Stores
