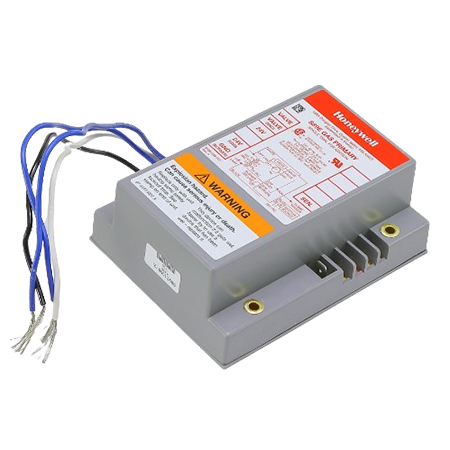

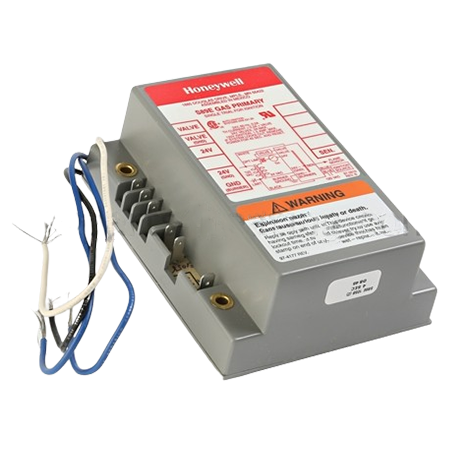

Honeywell S89E1058 Direct Spark Ignition Control

Honeywell S89E1058 Direct Spark Ignition Control
Images for general purposes only. Actual may be different than depicted.
Honeywell S89E1058 Direct Spark Ignition Control

Honeywell S89E1058 Direct Spark Ignition Control

SKU: S89E1058
In Stock 20
Rating:
$225.17 /ea
Qty of 5 - $212.90 /ea
Qty of 10 - $200.65 /ea
0
$0.00
0
$0.00
0
The Honeywell S89E F Direct Spark Ignition Control Modules control the ignition sequence and gas control operation in direct spark systems used primarily on gas-fired atmospheric and power burners in residential furnaces and heating appliances. Features: Controls ignition sequence and gas control operation in direct spark ignition systems. Control separate 120 Vac spark generator that provides high voltage potential for main burner ignition Lockout after one trial for ignition if main burner fails to ignite Reset from thermostat after lockout. Use separate electrodes for spark ignition and flame sensing Use any 24 Vac combination gas control designed for direct spark applications and rated at 2.0A or less.

Following are the Attached files for this product:

Honeywell S89E1058 Direct Spark Ignition Control
