Honeywell V4055D1001 120/60 26 SEC Opening Time W/ Damper Shaft

Honeywell V4055D1001 120/60 26 SEC Opening Time W/ Damper Shaft

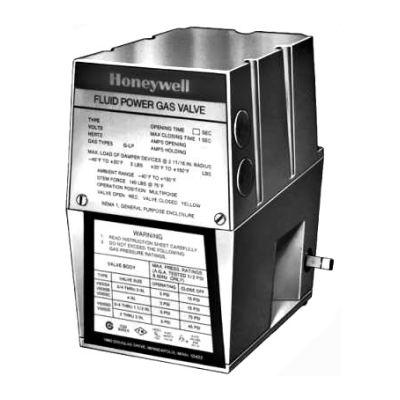

Images for general purposes only. Actual may be different than depicted.
Honeywell V4055D1001 120/60 26 SEC Opening Time W/ Damper Shaft

Honeywell V4055D1001 120/60 26 SEC Opening Time W/ Damper Shaft

SKU: V4055D1001
UPC: 0852671044
Rating:
Quantity Price Stock
80
Usually Ships 1-2 Weeks
$1,002.32     /ea
80
0
$0.00
0
$0.00
0
V4055D1001
Honeywell V4055D1001 120/60 26 SEC Opening Time W/ Damper Shaft

ON-OFF actuator with Proof of Closure. Use in combination with V5055 or V5097 Gas Valves to control gas supply to commercial and industrial burners.

Features:

Use where smooth light off is important. One-second maximum closing time. Continuously displays the valve position with a red indicator when open and a yellow indicator when closed. Mount in any position directly to valve bonnet with three setscrews. Provide final safety shutoff service when used with V5055 or V5097 Gas Valves.
Maximum Safe Operating Pressure 5 psi (34 kPa)
Temperature Range -40 C to +66 C (-40 F to +150 F)
Electrical Ratings 120 Vac
Frequency 60 Hz
Timing Opening-- 26 sec; Closing-- < 1 sec

Download Product Information:

Honeywell V4055D Gas Valve Actuator Data Sheet
