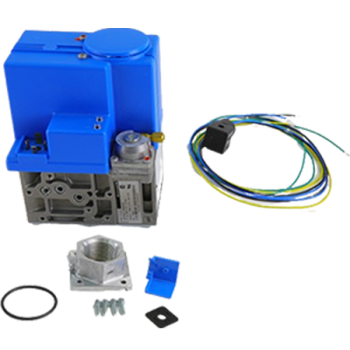

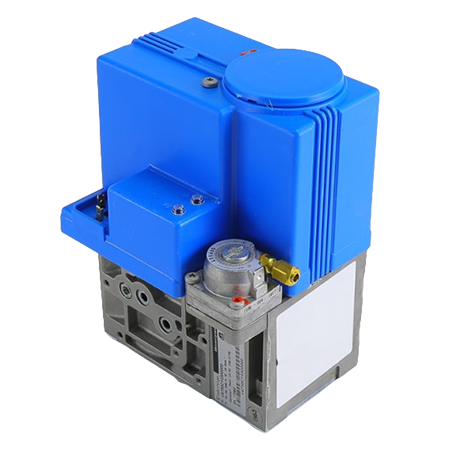

The V4730C1030 gas valve features a 1-1/4" NPT straight flange connection and 1/8" NPT pressure tappings on both inlet and outlet flanges. It includes a built-in mesh strainer for debris filtration and comes with a flange kit that contains a pipe adapter, an O-ring, four mounting screws, a wiring harness, and a DIN 43650 plug connector with 36-inch lead wires for easy electrical connections and installation.
This valve is designed for gas and air applications, specifically for controlling gas flow in heating systems and air handling units. It is commonly used in gas-fired burners, boilers, and rooftop heating units to ensure precise and efficient gas regulation, which is crucial for maintaining temperature and optimizing system performance.

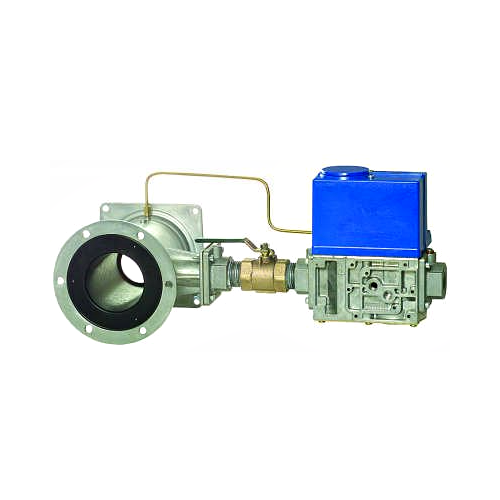

The V4730C1030 is easy to install and supports flexible mounting of the venturi manifold to the fan at angles up to ±90 degrees without affecting fuel or air metering. It also includes a position indication lamp for straightforward monitoring. The 32006652-004 flange kit accessory is available separately.
| Maximum Operating Pressure | 200 mbar (UL approved) 100 mbar for 120V; 69 mbar for 24V (UL approved),35 mbar (CSA approved) |
|---|---|
| Ambient Temperature Range | -15 C to +60 C (5 F to 140 F) |
| Natural Gas Capacity | 0.64 sp.gr, 55-382 KW when used with VMU335, 71-500KWa |
| Voltage | 120 Vac (+10%,-15%) |
| Coil Insulation Solenoid Valves | Class H insulation system |
| Connection Size | 1-1/4" NPT |
| Pressure Tapping Connection Size | 1/8" NPT |
| Total Current | 0.5 Amperage |
| Body Material | Aluminum alloy, die-cast |
| Approvals | UL-listed and CSA-certified |
