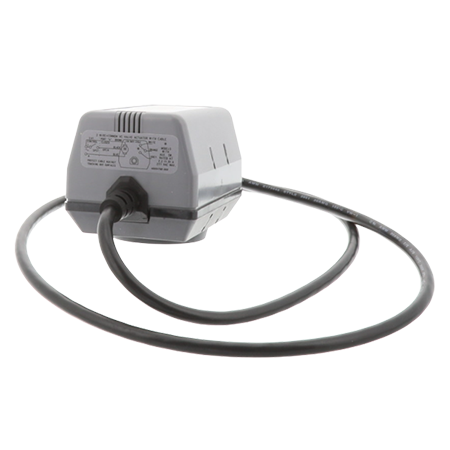

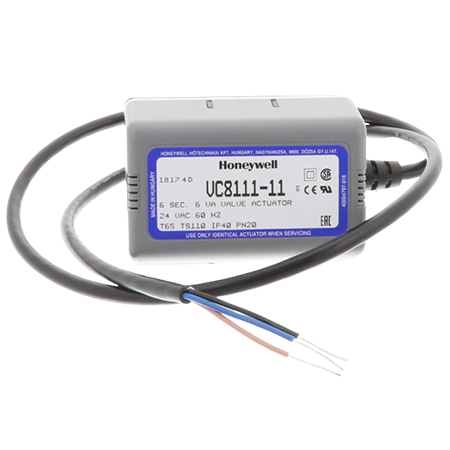

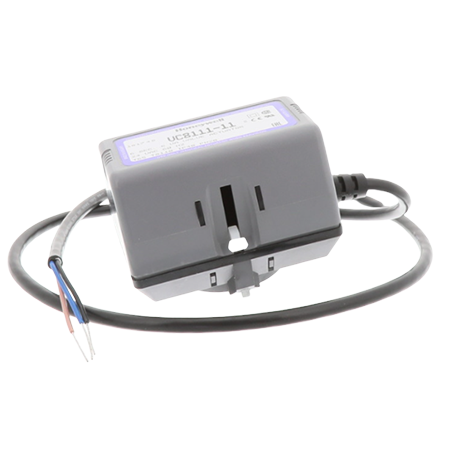

Honeywell VC8111ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator

Honeywell VC8111ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator
Images for general purposes only. Actual may be different than depicted.
Honeywell VC8111ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator Honeywell VC8111ZZ11 2 Position Actuator Honeywell VC8111ZZ11 2 Position On-Off 24V Actuator

Honeywell VC8111ZZ11 2 Position (On/Off) 24V (60HZ) 2 Wire Common Actuator

SKU: VC8111ZZ11
Rating:
Quantity Price Stock
39
Usually Ships 1 - 2 Weeks
$91.04     /ea
39

Buy in Bulk & Save

Quantity Price
5+ $86.49 /ea
0
$0.00
0
$0.00
0
VC8111ZZ11
The VC8111ZZ11 is a two-position on-off valve actuator that operates at 24V, 6W, and 50/60 Hz frequencies.  It has a 0 to 65°C (32 to 150°F) operating ambient temperature ideal for regulating heating or cooling systems, individual fan coils, baseboard radiators, or convector applications.  CE-marked, UL-recognized, and CSA-certified.

The PST control actuator is suitable for VCZ 1000, 1100, 6000, and 6100 series hydronic valves.  The unit is used for fast flow control of hot and chilled water or glycol solution with 60% concentration.  The motorized valve can be opened by pressing the red manual lever down to midway which holds it in an open position.

The VC8111ZZ11 is easy to install and can be mounted at right angles to the valve body.  The 272866B flushing kit accessory is also available.
Ambient Temperature Range 0°C to 65°C (32°F to 150°F)
Humidity Rating 5 to 95% RH, non-condensing
Mounting Direct Coupled
Maximum Power Consumption 6W
Fluid Temperature 34°F to 203°F (1°C to 95°C)
Voltage 24V
Maximum Close Rating 60 psi
Cable Length 39"
Contacts SPST
Frequency 50/60 Hz

Download Product Information:

Honeywell VC8111ZZ11 On/Off Actuator
