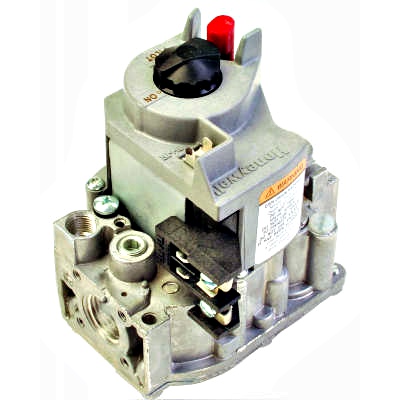

Honeywell VR8200A2132 Standing Pilot Natural Gas Valve 1/2

Honeywell VR8200A2132 Standing Pilot Natural Gas Valve 1/2
Images for general purposes only. Actual may be different than depicted.
Honeywell VR8200A2132 Standing Pilot Natural Gas Valve 1/2

Honeywell VR8200A2132 Standing Pilot Natural Gas Valve 1/2

SKU: VR8200A2132
In Stock 150
Rating:
$111.02 /ea
Qty of 6 - $107.55 /ea
Qty of 12 - $104.09 /ea
0
$0.00
0
$0.00
0
Honeywell VR8200A2132 Standing Pilot Natural Gas Valve 1/2

Single Stage, 24 Vac, Standard Opening, Standing Pilot Gas Valve. 1/2 x 1/2". Set 3.5" WC. Combination gas control for use in 24 Vac gas-fired, standing pilot appliances with capacities from 30 to 300 cfh.

Features:

Control includes safety shutoff, manual valve, two automatic operators, pressure regulator and pilot adjustment. Compact size. Provides two automatic valves. Solenoid operated first automatic valve opens on thermostat call for heat, closes when call for heat ends. Diaphragm-operated second automatic valve opens under control of regulator; closes if gas or power supply is interrupted. Meets codes requiring dual safety shut-off. Natural to LP and LP to Natural conversion kits available for standard and slow opening gas valves. All adjustments, wiring connections and pilot outlet are accessible from top of control. Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure. Compatible with ECO connector. LITE-RITE (OFF-PILOT-ON) lighting sequence.

Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Operating Temperature Range -18 C to +79 C (0 F to 175 F)
Pressure Ratings 1/2 psi (3.5 kPa)
Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing
Pressure Regulator Standard

Following are the Attached files for this product:

Honeywell VR8200A2132 Standing Pilot Gas Valve
