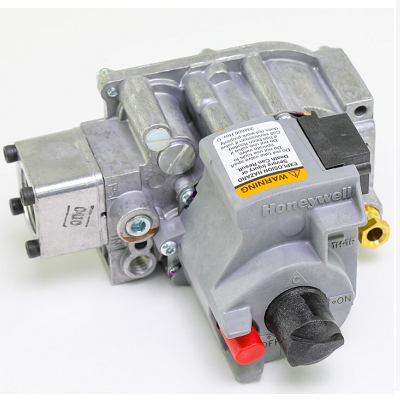

Honeywell VR8300H4501 Standing Pilot Natural Gas Valve 24V

Honeywell VR8300H4501 Standing Pilot Natural Gas Valve 24V
Images for general purposes only. Actual may be different than depicted.
Honeywell VR8300H4501 Standing Pilot Natural Gas Valve 24V

Honeywell VR8300H4501 Standing Pilot Natural Gas Valve 24V

SKU: VR8300H4501
Usually Ships 1-2 Weeks
Rating:
$188.47 /ea
Qty of 6 - $182.57 /ea
Qty of 12 - $176.69 /ea
0
$0.00
0
$0.00
0

Honeywell VR8300H4501 Standing Pilot Natural Gas Valve 24V

The VR8300 continuous pilot dual automatic valve combination gas controls are used in gas-fired standing pilot appliances. They include safety shutoff a manual valve two automatic operators and a pressure regulator.

FEATURES

  • Controls include safety shutoff manual valve two automatic operators pressure regulator and pilot adjustment
  • Compact size
  • Provide two automatic valves
  • Solenoid operated first automatic valve opens on thermostat call for heat closes when call for heat ends
  • Diaphragm-operated second automatic valve opens under control of regulator closes if gas or power supply is interrupted
  • Meets codes requiring dual safety shutoff All adjustments wiring connections and pilot outlet are accessible from top of control
  • Adjustable servo regulator effectively maintains almost constant gas output pressure under wide fluctuations in gas supply pressure
  • Compatible with ECO connector LITE-RITE (OFF-PILOT-ON) lighting sequence
Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically
Frequency 60 Hz
Approvals UL Component Recognized MCCZ2.MH5323; CSA International: 112395
Voltage 24V
Operating Temperature Range 0 F to 175 F; -18 C to +79 C

Following are the Attached files for this product:

Honeywell VR8300H4501 24V Standing Pilot Natural Gas Valve
