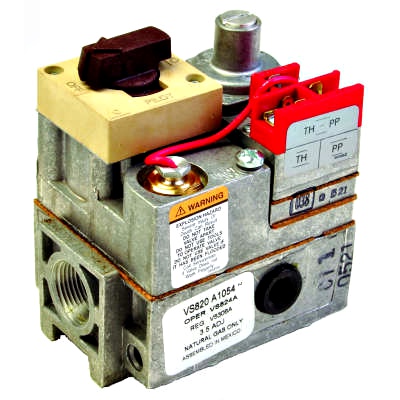

Honeywell VS820C1100 Combination Step Opening Millivolt Gas Valve

Honeywell VS820C1100 Combination Step Opening Millivolt Gas Valve
Images for general purposes only. Actual may be different than depicted.
Honeywell VS820C1100 Combination Step Opening Millivolt Gas Valve

Honeywell VS820C1100 Combination Step Opening Millivolt Gas Valve

SKU: VS820C1100
Rating:
Quantity Price Stock
Usually Ships 1-2 Weeks
Usually Ships 1-2 Weeks
$1,406.21     /ea
Usually Ships 1-2 Weeks
0
$0.00
0
$0.00
0
VS820C1100
Honeywell VS820C1100 Combination Step Opening Millivolt Gas Valve

750mV Step Opening Gas Valve. 3/4 x 3/4 with 1/2" side outlets. Step Rate 0.9" WC; Full Rate 3.5” WC. These gas controls combine a Lite-Rite manual gas cock, safety shutoff Pilotstat assembly, millivoltage automatic valve operator, and optional gas pressure regulator. They require the use of a 750 mV Powerpile generator (thermopile). The generator, heated by the pilot burner flame, provides the electrical energy to operate the combination gas control. A millivoltage thermostat with suitable accessory controls completes the automatic control system for the heating appliance.

Features:

Include pilot flow adjustment screw. Easy to install, adjust and service; all adjustments and connections are accessible from top of control. Add separate energy cutoff (ECO) where codes call for dual safety shutoff. Complete safety shutoff on pilot flame failure. LITE-RITE (OFF-PILOT-ON) lighting sequence.
Mounting 0 to 90 degrees in any direction from the upright position of the gas control knob, including vertically.
Operating Temperature Range 0 C to 79 C (32 F to 175 F)
Pressure Ratings 1/2 psi (3.5 kPa)
Pilot Gas Outlet Compression fitting for 1/4 in. OD tubing
Pressure Regulator Step Opening
