ICM Controls ICM6500 Air Handler Control for Electric or Hot Water Heating Systems

Name: ICM Controls ICM6500 Air Handler Control for Electric or Hot Water Heating Systems
Brand: ICM Controls
SKU: ICM6500
Price: 151.17 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

ICM Controls ICM6500 Air Handler Control for Electric or Hot Water Heating Systems

SKU: ICM6500

Tariff HS Code: 9032896025

Brand:

Rating:

Quantity	Price	Stock
26 Usually Ships 2-3 Weeks	$151.17 /ea	26

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

ICM 6500 Air Handling Controller for Electric or Water Heating Systems

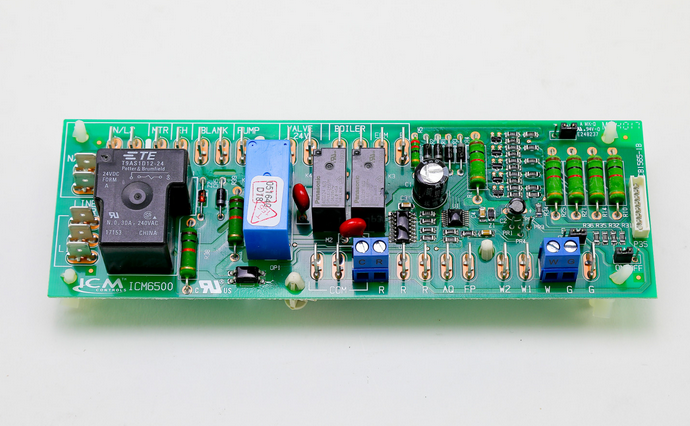

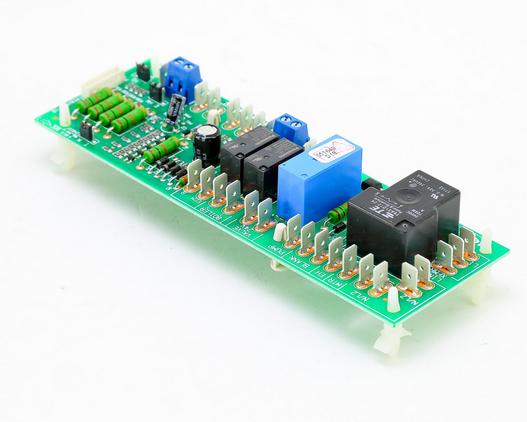

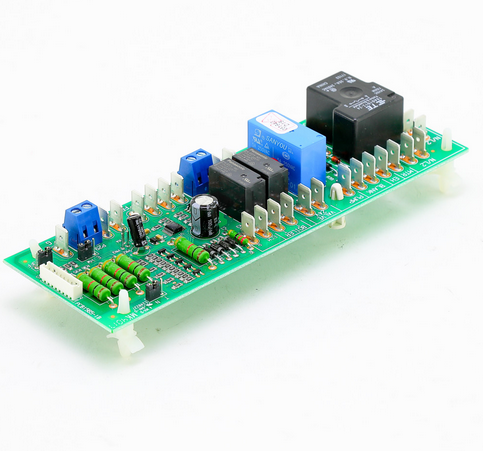

The ICM6500 air handler control board operates with electric or hot water heating systems. For electric heating systems, the blower fan is turned on with the electric heat. For hot water heating systems, the blower fan, water circulation pump, valve and auxiliary relay are activated by the controller. The blower fan is controlled for cooling cycles. The ICM6500 replaces the Vtronics R200A

Features:

Multi-functional control
Microprocessor controlled
Precision timing
Low cost solution

Blower Fan	120/240 VAC, 50/60 Hz, 13A/6.5A
Water Pump	120/240 VAC, 50/60 Hz, 1.5A/1.5A
Valve Output	24 VAC, 50/60 Hz, 5A
Input Voltage	24 VAC, 120/240 VAC, 50/60 Hz
Boiler	24 VAC, 50/60 Hz, 5A
ECM Ouput	24 VAC, 5A
Timing	â€“ Cool fan on delay: 0 Seconds â€“ Cool fan off delay: 45 Seconds â€“ Electric heat fan on delay: 0 Seconds â€“ Electric heat fan off delay: 0 Seconds â€“ Water heat fan on delay: 60 Seconds â€“ Water heat fan off delay: 30 Seconds
Dimensions	2" W x 7" L

Download Product Information:

ICM Controls ICM6500 Air Handler Control Installation Instructions

ICM Controls ICM6500 Air Handler Control Brochure
