V-2410-3

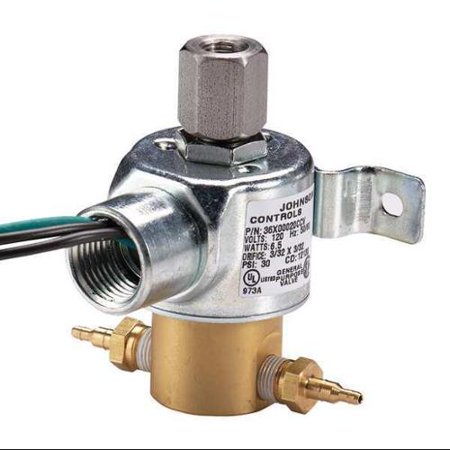

Johnson Controls Three-Way Multipurpose Solenoid Air Valve

The V-2410 Three-Way Multipurpose Solenoid Air Valve is designed for use in applications where the operation of a pneumatic device is dependent upon an electrical circuit. The V-2410 diverts the air signal to the pneumatic device(s) when the coil is energized or de-energized, depending on the choice of air connections used (N.O. Normally Open, N.C. Normally Closed, and COM. Common).  In a typical V-2410 application, supply air is connected to the N.C. port, the control device is connected to the COM. port, and the N.O. port is left vented. When the solenoid is energized, a magnetic field activates a plunger-type valve stem, the N.C. port opens, and supply air is directed through the COM. port to the control device. When the solenoid is de-energized.

Features:

• Compact Size with Durable, Solid Brass Construction
• Can Be Mounted in Any Position
• Conduit Adaptable to Meet Electrical Code Requirements (Conduit Housing Style Models Only)
• Readily Adaptable Air Connections
• Positive Air Seal
• Can Be Used in Smoke Control Applications
Style Conduit Housing
Electrical Rating 208V
Frequency 50/60Hz
Electrical Termination Thermoplastic Leads
Nominal Power Consumption 6.5-Watts
