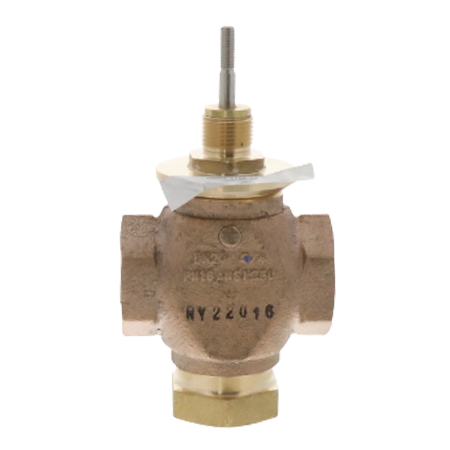

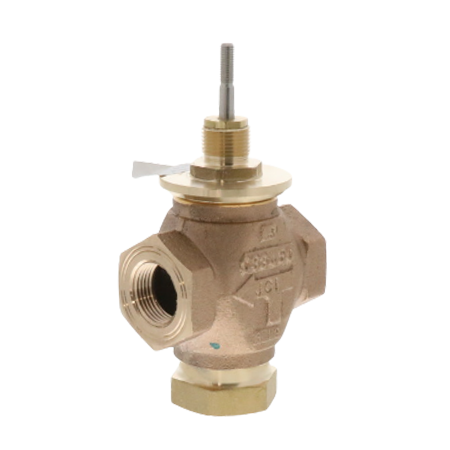

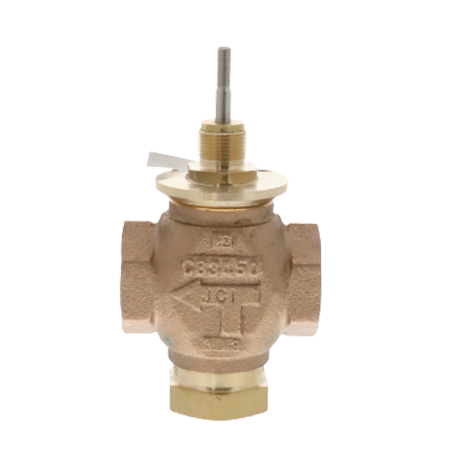

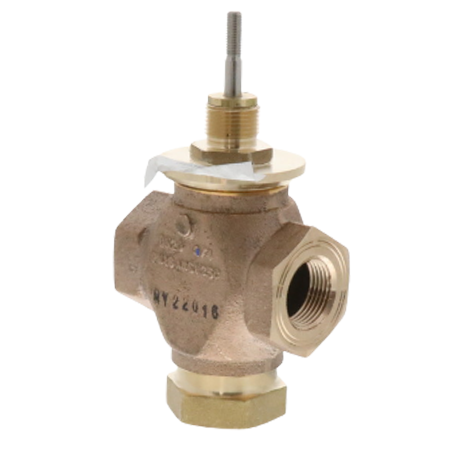

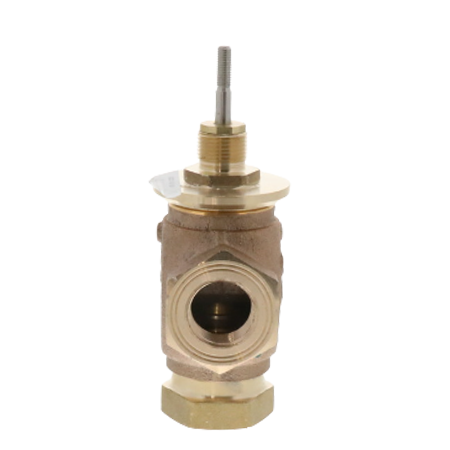

The VG7842LT is a three-way mixing cast bronze globe valve that has a 3/4" NPT valve size with a linear flow characteristic. The valve has a 7.3 Cv flow capacity. It has a 38 psi (262 kPa) maximum saturated steam pressure and 35 to 284°F (2 to 140°C) body fluid temperature.
The brass trim globe valve is suitable for hot water, chilled water, and 50% glycol solution steam applications. The unit is mainly used to control the flow of water or steam based on the requirement of the HVAC system. Also available are the VG7000-6001 packing kit and the VG78K2LT accessories.
The VG7842LT is designed with full actuator interchangeability that provides easy installation and mounting with standardized mounting kits.
Check out the available valve actuators:
| Valve Size | 3/4" NPT |
|---|---|
| Flow Capacity | 7.3 Cv |
| Maximum Saturated Steam Pressure | 38 psi (262 kPa) |
| Body Material | Cast Bronze |
| Stem Material | Stainless Steel |
| Flow Characteristic | Three-Way Linear |
| Body Fluid Temperature | 35 to 284°F (2 to 140°C) |
