Name: Lennox 12S60 Electric Heater ECB25-10CB-P 10 kW
Brand: Lennox
SKU: 12S60
Price: 267.91 USD
Availability: OutOfStock

Lennox 12S60 Electric Heater ECB25-10CB-P 10 kW

SKU: 12S60

UNSPSC: 40100000

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$267.91 /ea	Usually Ships 2 - 4 Weeks

Add to Cart

Add to Wishlist

The 12S60 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Lennox 89W48 10Kw Heater	89W48 Brand Lennox

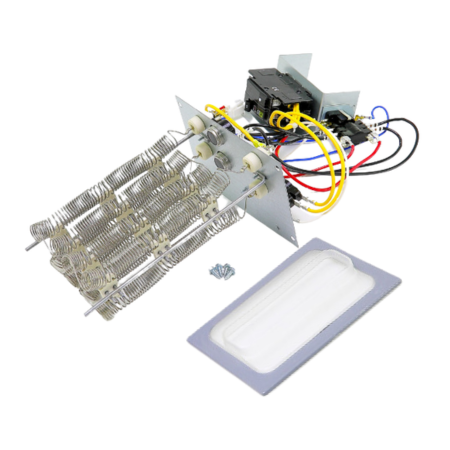

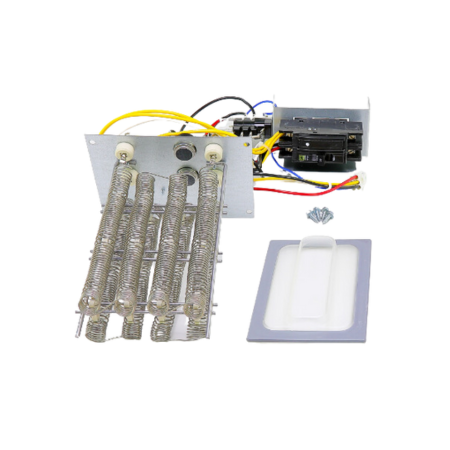

The Lennox 12S60 (ECB25-10CB-P) is a single-phase 10 kW electric heater with a circuit breaker. This device operates with 60 Hz and 208/240V power ratings.

The electric heater converts electric current to heat that provides heat to the furnace. This component features a built-in thermostat and overheat protection to automatically shuts off the system when it is too hot.

Directly replaced by the Lennox 27A15 (ECBA25-10CB) electric heat kit. Commonly used with Lennox CBX25UH and CBX25UHV air handlers and furnaces. Compatible with G16S-60, G14S-60, G14S-75, G12S-60, G12S-75.

Heating Capacity	10 kW
Number of Phase	Single Phase
Voltage	208/240V
Series	ECB25
Frequency	60 Hz
Type	Electric Heat Section

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I currently have a 5KW in my CBX25UH. I want to move to the 10KW heat strip. Is this as simple as pulling out the 5KW and its breakers and put this one in. Do I have to increase the speed of the blower? If so, can you tell me how?

Asked on January 05, 2018 by Drew from Uniontown, Pa

1 Answers

Have an answer? Click Here

When switching from the Lennox CBX25UH air handler to a larger unit it is very important to consider all aspects of the upgrade. Simply switching the heat strip to a larger capacity may not be safe as other components and variables need to be considered. The original 5 KW air handler fabrication materials and its components may not be rated for the larger size. We suggest speaking to a licensed and qualified Lennox dealer in your area. You can enter your location at the following link and find an approved Lennox service technician. Once they suggest the part for upgrade we can gladly supply it to you with the best pricing and fastest shipping.

Replied on January 06, 2018 by Ori from Industrial Stores
