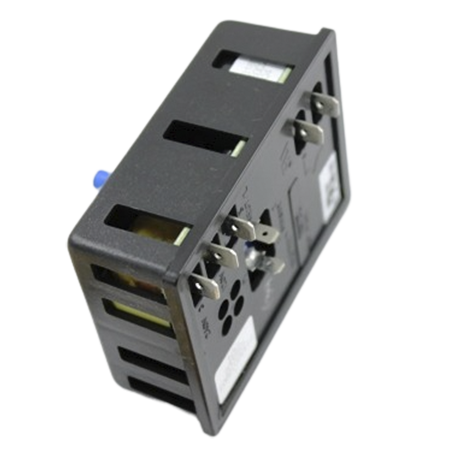

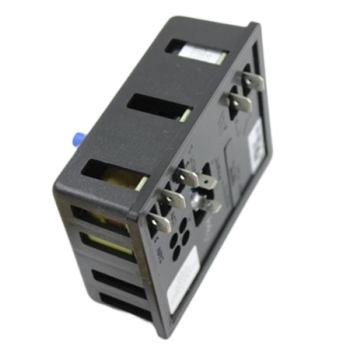

Maxitrol P14A0318-903 Pakstat Series 1 Electronic Thermostat 150-550F

Name: Maxitrol P14A0318-903 Pakstat Series 1 Electronic Thermostat 150-550F
Brand: Maxitrol
SKU: P14A0318-903
Price: 168.63 USD
Availability: OutOfStock

Images for general purposes only. Actual may be different than depicted.

Maxitrol P14A0318-903 Pakstat Series 1 Electronic Thermostat 150-550F

SKU: P14A0318-903

Brand:

Rating:

Quantity	Price	Stock
Usually Ships 2 - 4 Weeks Usually Ships 2 - 4 Weeks	$168.63 /ea	Usually Ships 2 - 4 Weeks

Order in multiples of 25

Add to Cart

Add to Wishlist

Add to Cart

Add to Wishlist

The P14A0318-903 is an electronic thermostat that has a power rating of 120V, 50/60 Hz, and 2 to 20 amps. It has a 150 to 550°F temperature range and 0°C to +70°C ambient operating temperature.

The Pakstat Series I electronic thermostat is suitable for use with mechanical, pneumatic, and DIN-packaged controller applications. The unit is ideal for precise temperature control with a narrow dead band that provides excellent performance.

The P14A0318-903 is quick and easy to install with quick-connect terminals with an adjustable wire sensor that removes the issues of capillary tube kinking and breakage. The 01724601-001 sensor is also available.

Operating Relative Humidity	5% to 95% (noncondensing)
Ambient Operating Temperature	0°C to +70°C
Static Deadband	±1°
Frequency	50/60 Hz
Input Voltage	120V
Relay Contact Rating	2 to 20 Amps
Temperature Range	150 to 550°F

Download Product Information:

Maxitrol P14A0318-903 Pakstat Series 1 Electronic Thermostat Technical Datasheet

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

I have a Paktronics P14A0318951, 73951107 thermostat for a heated floor in a bathroom. The temperature range for this appears to be very high for a heated floor. But, I have no idea. It is a 25 year old thermostat.

Asked on April 03, 2023 by keith from Earlysville, VA

1 Answers

Have an answer? Click Here

It may be caused by the age of the control, the system, or many other issues related to the system. We highly suggest getting a licensed professional to review your system and ensure it is working as required. This will provide you with a better insight into options for correcting or upgrading.

Replied on April 04, 2023 by Ori from Industrial Stores

I have a paragon electric kiln with this type of control switch an I believe I need to replace it, so my question is will this switch work on my kiln ? It has a number on back which P14A0318417987 an a name of PAKTRONICS on it.

Asked on August 11, 2021 by Thomas from Abernathy, Texas

1 Answers

Have an answer? Click Here

Unfortunately the Maxitrol P14A0318417987 seems to be an OEM part and you would need to check with your Paragon the Kiln OEM for this part.

Replied on August 11, 2021 by Ori from Industrial Stores

Can you purchase just the wire sensor for the pakstat series 1?

Asked on January 28, 2018 by Beth from Newport, PA

1 Answers

Have an answer? Click Here

Yes, the sensor is available for purchase separately. It is the Maxitrol 01724601-001, which is currently in stock. It's a 48" lead.

Replied on January 29, 2018 by Ron from Industrial Stores
