Maxitrol SC11-B Signal Conditioner

Maxitrol SC11-B Signal Conditioner
Images for general purposes only. Actual may be different than depicted.
Maxitrol SC11-B Signal Conditioner Maxitrol SC11-B Signal Conditioner 24V Maxitrol SC11-B Signal Conditioner for Direct-Fired or Indirect-Fired Gas

Maxitrol SC11-B Signal Conditioner

SKU: SC11-B
Rating:
Quantity Price Stock
45
Usually Ships 1 - 2 Weeks
$133.93     /ea
45

Buy in Bulk & Save

Quantity Price
5+ $123.22 /ea
0
$0.00
0
$0.00
0
SC11-B

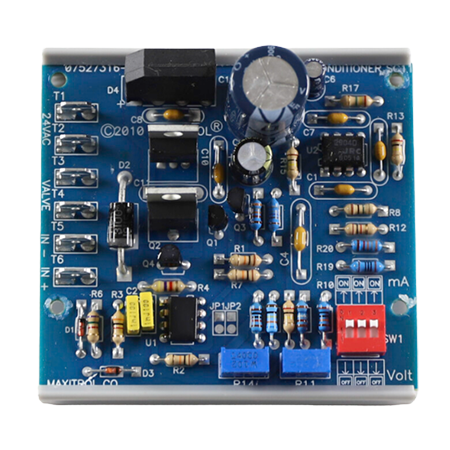

The SC11-B is a signal conditioner that operates at 24V, 20VA, 1.8A, and 50/60 Hz frequencies.  It converts from 4 to 20 mA or 0 to 10V input into a 0 to 20VDC output signal.  It can handle up to -40° to 158°F (-40° to 70°C) ambient temperatures.

The signal conditioner is suitable for direct-fired or indirect-fired gas applications.  The unit is used to control multiple valves at the same time.  The input signal can be adjusted by turning all the DIP switches on for 4-20 mA and all positions off for 0-10V.

The SC11-B directly replaces part number SC10C-B6S1.

The SC11-B is easy to install with a tracking mount.

Voltage 24V
Amperage 1.8A
Power Rating 20VA
Frequency 50/60 Hz
Output Signal 0 to 20VDC
Input Signal 4 to 20 mA or 0 to 10V
Ambient Temperature -40° to 158°F (-40° to 70°C)

Q & A: Ask the Questions, share answers

Do you have questions about this product?


Q:
Hola, soy revendedor y apenas lo estara cotizando , para solicitar este equipo con ustedes , que tipo de cambio toman y si podra hacer una transferencia en pesos ( MN) El costo de envio ..?
Asked on Apr 08, 2022 by IVAN from Aguascalientes - Mexico
1 Answers

Have an answer? Click Here

A:
Question in English:
Hello, I am a reseller and I will only be quoting it, to request this equipment with you, what type of exchange do you take and if I can make a transfer in pesos (MN) The shipping cost ..?

English Response:
Resellers are welcome to apply for membership in our Reseller Program. The application for membership can be found here.
We accept PayPal or Credit Card payment on orders made within the United States. International orders must be paid in USD via wire transfer.

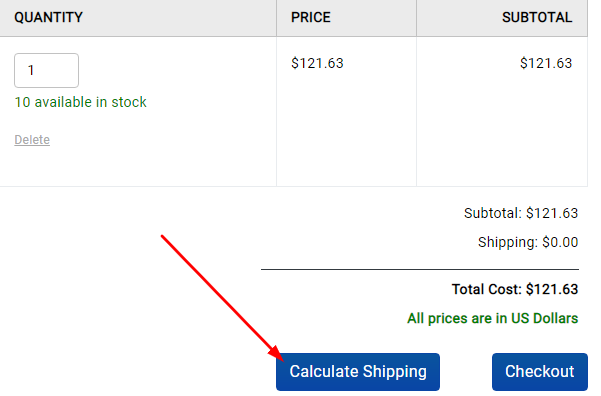

Shipping cost can be calculated before checkout.
