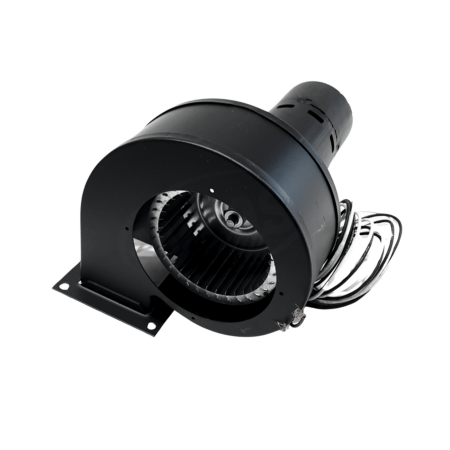

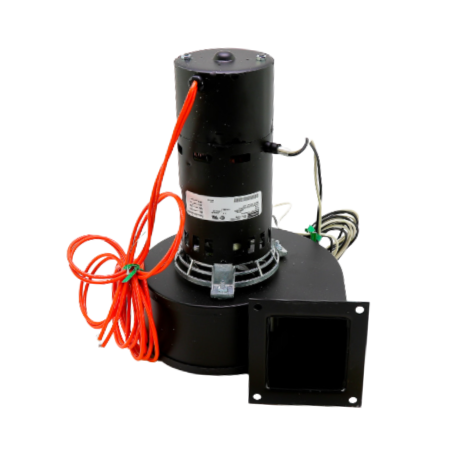

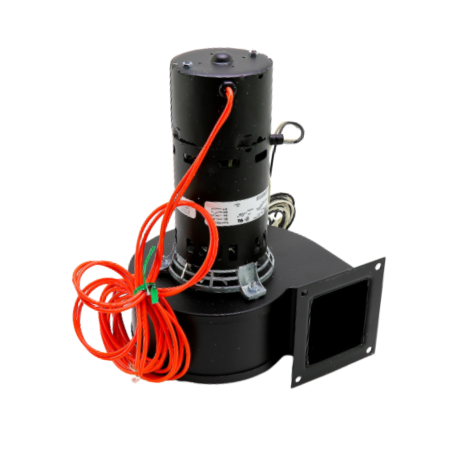

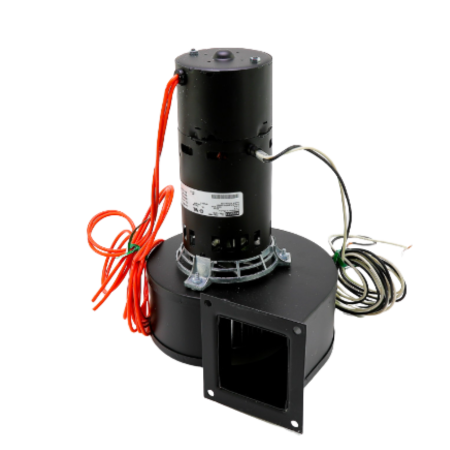

Modine 5H0767230001 Induced Draft Assembly 115V 60 Hz 3000 RPM

Modine 5H0767230001 Induced Draft Assembly 115V 60 Hz 3000 RPM
Images for general purposes only. Actual may be different than depicted.
Modine 5H0767230001 Induced Draft Assembly 115V 60 Hz 3000 RPM Modine 5H0767230001 Induced Draft Assembly Modine 5H0767230001 Induced Draft Assembly 115V 60 Hz Modine 5H0767230001 Induced Draft Assembly 115V 60 Hz 3000 RPM

Modine 5H0767230001 Induced Draft Assembly 115V 60 Hz 3000 RPM

SKU: 5H0767230001
UNSPSC: 26131600
Rating:
Quantity Price Stock
14
Usually Ships 2 - 4 Weeks
$660.67     /ea
14

The 5H0767230001 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product SKU
Modine 5H76723-1 Induced Draft Assembly 115V 5H76723-1

Brand Modine
Modine 5H76723-1 Induced Draft Assembly 115V
0
$0.00
0
$0.00
0
5H0767230001
The Modine 5H0767230001 is an induced draft assembly that operates at 2.0A, 115V, and 60 Hz electrical ratings.  It is both CSA Listed and UL Recognized, ensuring compliance with safety and performance standards.

Running at 3000 RPM with Class B insulation, this assembly generates the airflow necessary to safely remove combustion gases from the heating system.  It helps maintain efficient operation and ensures proper exhaust ventilation.

The 5H0767230001 is a direct replacement for the 5H76723-1 induced draft assembly and is specifically designed for use in industrial and commercial ventilation systems.
Voltage 115V
Frequency 60 Hz
Amperage 2.0A
Speed 3000 RPM
Switch 125VA-120V
Insulation Class Class B
Assembled in Mexico
Approvals CSA Listed and UL Recognized
Product Type Induced Draft Assembly
Application HVAC System
