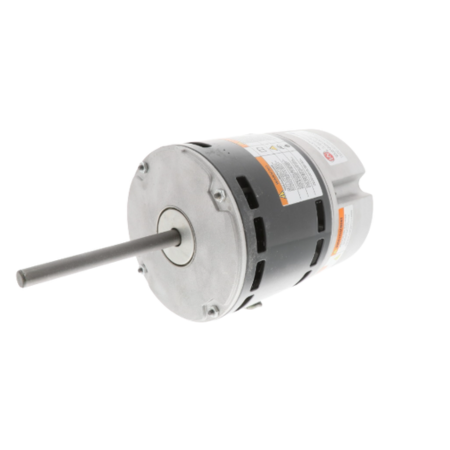

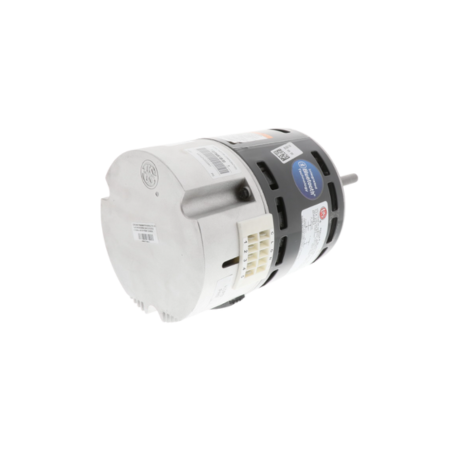

Nidec-US Motors 6653 Programmable ECM Direct Drive Blower Motor 1 HP 115/208-230V 1075 RPM 1-Speed

Name: Nidec-US Motors 6653 Programmable ECM Direct Drive Blower Motor 1 HP 115/208-230V 1075 RPM 1-Speed
Brand: Nidec
SKU: 6653
Price: 324.06 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Nidec-US Motors 6653 Programmable ECM Direct Drive Blower Motor 1 HP 115/208-230V 1075 RPM 1-Speed

SKU: 6653

UNSPSC: 26101400

Brand:

Rating:

Quantity	Price	Stock
33 Usually Ships 2 - 4 Weeks	$324.06 /ea	33

Add to Cart

Add to Wishlist

The 6653 found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Trane MOT13136 Motor 1 HP 208-230V Counter-Clockwise	MOT13136 Brand Trane

Add to Cart

Add to Wishlist

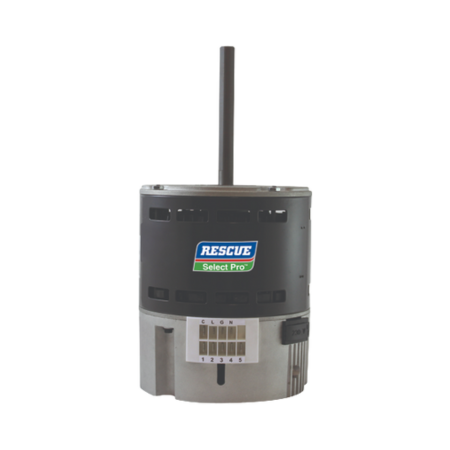

The Nidec-US Motors RESCUE Select Pro™ is a programmable ECM direct-drive blower motor with 10 poles. This single-phase motor is rated at 1 HP, 115/208-230V, 50/60 Hz electrical ratings. It is UL Listed, ensuring safety compliance.

Features

6000V surge protection
Pre-programmed with standard settings for quick installation
Programmable via the RESCUE Select® App to match OEM profiles
High-efficiency design with smooth, quiet start-up and speed transitions
Uses existing equipment connections for easy installation
Integrated Bluetooth® with auto-sensing rotation
Potted electronic module for moisture protection

This motor has a 1.2” diameter x 5.5” length shaft, rotating at 1075 RPM in a reversible direction at 1-speed, and can withstand 40°C ambient temperature. It also has a 48-frame, Class B insulation, ball bearings, and an OPAO enclosure providing durability and smooth performance.

It is a direct replacement for the Trane MOT13136 and MOT12283 motors. Ideal for drop-in solution OEM constant torque motors. Also serves as a universal ECM replacement for Selectech, X13, and EnduraPro models, with belly band mounting for versatile installation.

Insulation Class	Class B
Rotation Speed	1075 RPM
Motor Speed	1-Speed
Electrical Ratings	1 HP, 115/208-230V, 50/60 Hz
Shaft Size	1.2" Diameter x 5.500" Length
Amperage	12.4 /7.8-7.2 Amps
Number of Phase	Single-Phase
Rotation Direction	Reversible
Frame Size	48-Frame
Body Length	6.975”

Download Product Information:

Nidec-US Motors Rescue Select Pro Programmable ECM Motor Datasheet
