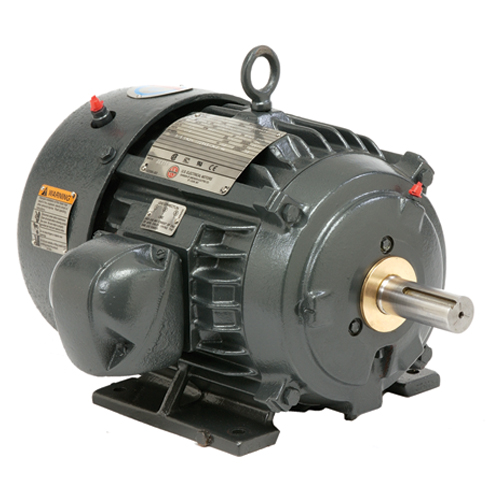

General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC) 841 PLUS® NEMA® Premium Efficient
APPLICATIONS:
For constant speed and inverter duty applications in petro-chemical, pulp & paper, automotive, mining and waste treatment industries.
FEATURES:
• INVERTER GRADE® Insulation System (Meets NEMA®† MG-1 Part 31)
• Class F Insulation, Class B Rise At Full Load (Sine Wave Power)
• All Cast Iron Construction (Steel Mounting Base On 140 Frame)
• Corrosion Resistant Mill & Chem Duty Paint (250 Hour Salt Spray Test)
• Stainless Steel Nameplate (with "CE" Mark) & Zinc Plated Hardware
• 40°C Ambient, NEMA®† Design B Performance (Sine Wave Power)
• VBXX®† Bearing Isolators By Inpro/Seal On Both Ends For IP55 Protection
• Same Size Regreasable Open Bearings, Brass Breathers/Drains
• CARB® Bearing Available As Conversion On 400 Frame & Up
• 5 Year Warranty (3 Years on Inverter Power)
• External Grounding Provision, Epoxy Coated Rotor
• 10:1 Variable Torque; 5:1 Constant Torque On Inverter Power
• Precision Balance (< 0.05 In/Sec Vibration)
• 1.15 SF On Sine Wave / 1.0 SF On Inverter Power
• Conversion Kits: C&D Flange, Drip Cover Kit (except 320-360)
• Meets or exceeds IEEE 841 Standard 2009
Motor Enclosure | Totally Enclosed Fan Cooled |
---|---|
Hertz | 60 |
Frame | 326 |
Mounting | Horz-Footed |
Rotation | Dual |
