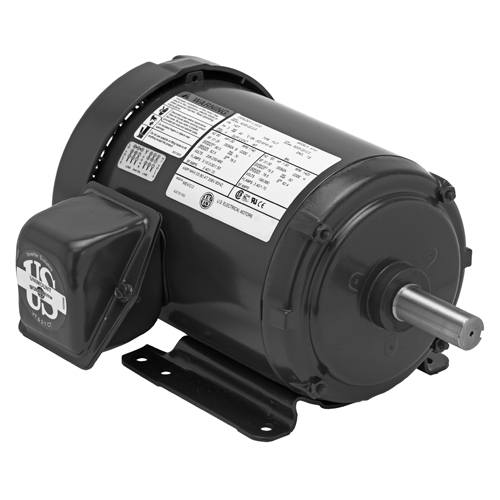

Emerson Motors (Nidec) T12S1A 208-230/460V 3Ph 1/2Hp 3450Rpm
General Purpose Three Phase, Totally Enclosed Fan Cooled (TEFC)
APPLICATIONS:
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
FEATURES:
STEEL EDGE™
• Rolled Steel Frame
• Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power
• "CE" Mark On Nameplate (140 Frames and Ratings with Note 03)
• Shaft Slinger On Pulley End
• 40°C Ambient, NEMA®† Design B Performance On 60 Hertz Sine Wave Power
• Sealed Bearings (140 Frame); Double Shielded Bearings (180 Frame and Up)
• Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage
• Conversion Kits: C&D Flanges, Drip Cover and Brakes (140 Frame and Up)
Motor Enclosure | Totally Enclosed Fan Cooled |
---|---|
Hertz | 60 |
Frame | 56 |
Thermal Protection | None |
Rotation | Reversible |
