Nordyne 902816 Blower Assembly 3/4 HP 115V

Nordyne 902816 Blower Assembly 3/4 HP 115V
Images for general purposes only. Actual may be different than depicted.
Nordyne 902816 Blower Assembly 3/4 HP 115V Nordyne 902816 Blower Assembly Nordyne 902816 Blower Assembly 3/4 HP Nordyne 902816 Blower Assembly 3/4 HP 115V

Nordyne 902816 Blower Assembly 3/4 HP 115V

SKU: 902816
UNSPSC: 40101601
Rating:
Quantity Price Stock
Usually Ships 2 - 4 Weeks
Usually Ships 2 - 4 Weeks
$757.97     /ea
Usually Ships 2 - 4 Weeks
Add to Cart
Add to Wishlist

Shipping Note

Ships via LTL ( Truck )

Add to Cart
Add to Wishlist
0
$0.00
0
$0.00
0
902816

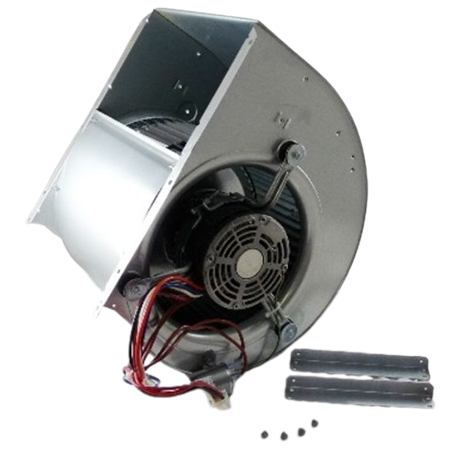

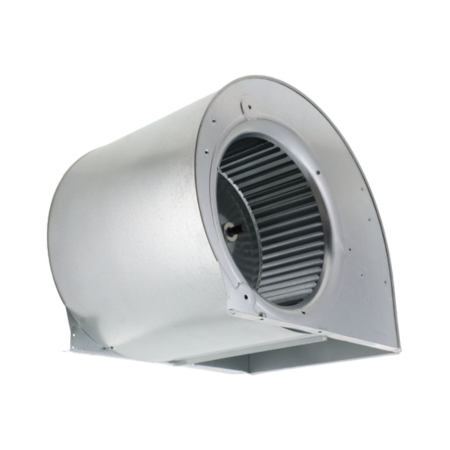

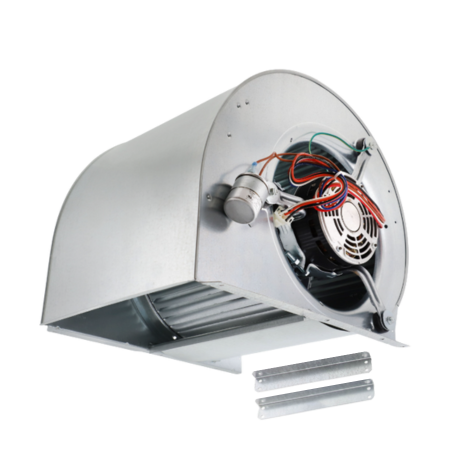

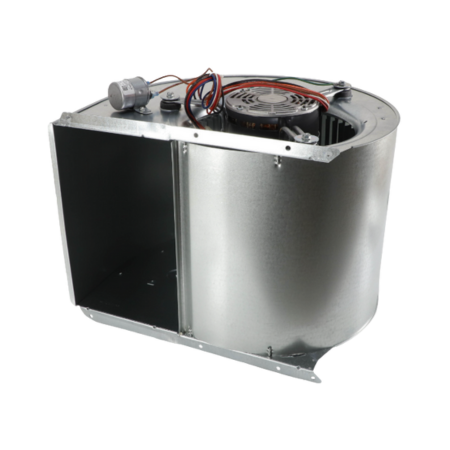

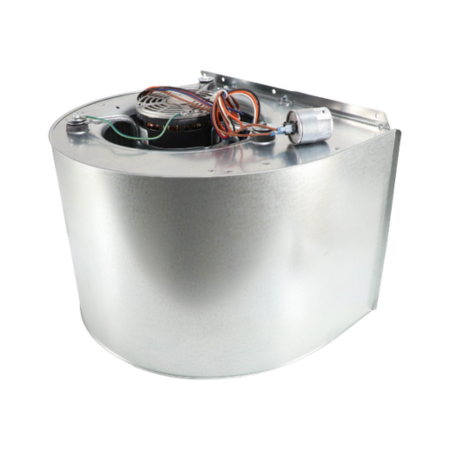

The Nordyne 902816 is a complete multi-speed blower assembly that operates at 3/4 HP and 115V electrical ratings.

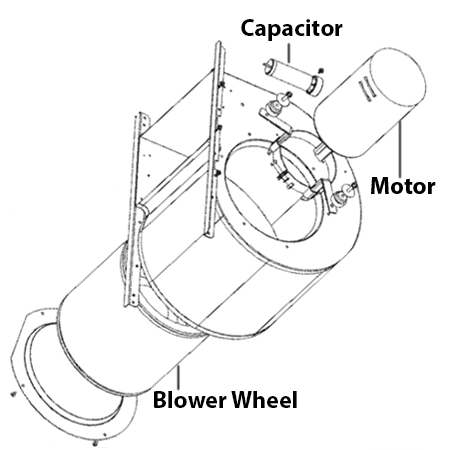

Assembly Inclusions

  • 902346 Blower Motor
  • 903489 Motor Mount Kit
  • 667277 Blower Wheel (10" x 11")
  • 01-0024 Single Round Run Capacitor (10 MFD)

This assembly ensures proper air circulation for heating and cooling functions, supporting system performance and comfort.

It directly replaces M0013005, M0012101, 903817, and 259462.  Compatible with the following furnace model numbers:

FG6RA 096C-20B
FG6RA 120C-20C
FG6RC 100C-20B
FG6TA 096C-20B
G5RA 096C-20
G5RA 120C-20-H
G5RA 144N-20
G6RA 096C-20C
G6RA 120N-20C
G6RC 100N-20B
G6TA 120N-20C
GL1RA 126N-20C
KG6RA 120C-20C
KG6RA-120N-20C
KG6RC 120N-20C
KG6TA 120C-20C
MGF1RC120C20C
PGF1RC120C20C		 FG6RA 096C-20C
FG6RA 120N-20C
FG6RC 100N-20B
FG6TA 096N-20B
G5RA 096C-20-H
G5RA 120N-20
G5RC 120C-20
G6RA 096N-20B
G6RA 144C-20C
G6RC 120C-20C
GL1RA 108C-20C
GL1RC 120D-20C
KG6RA 144C-20C
KG6RA-144N-20C
KG6RC-120C-20C
KG6TA 120N-20C
MGF1TA120C20C
PGF1TA120C20C		 FG6RA 096N-20B
FG6RA 144C-20C
FG6RC 120C-20C
FG6TA 120C-20C
G5RA 096N-20
G5RA 144C-20
G5RD 120C-19
G6RA 096N-20C
G6RA 144N-20C
G6RC 120N-20C
GL1RA 108N-20C
KG6RA 096C-20B
KG6RA-096C-20C
KG6RC 100C-20B
KG6TA 096C-20B
L1RC 120D-20C
MGF1TA120N20C
PGF1TA120N20C		 FG6RA 096N-20C
FG6RA 144N-20C
FG6RC 120N-20C
FG6TA 120N-20C
G5RA 120C-20
G5RA 144C-20-H
G6RA 096C-20B
G6RA 120C-20C
G6RC 100C-20B
G6TA 120C-20C
GL1RA 126C-20C
KG6RA 096N-20B
KG6RA-096N-20C
KG6RC 100N-20B
KG6TA 096N-20B
MGC1RC120D20C
PGC1RC120D20C
Horsepower 3/4 HP
Voltage 115V
Application Furnaces

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question
Q:
Does this replace blower assembly for Gibson model# GL1RA 126C-20C serial# GLA011002671
Asked on June 20, 2025 by Mindy from Senatobia, MS
1 Answers

Have an answer? Click Here

A:
Yes, the Nordyne 902186 blower assembly is suitable for the Gibson 126-20C unit.

Replied on June 23, 2025 by Ori from Industrial Stores
Q:
My blower assembly has 1 sticker on it. No name just a number It says Blower assy M0012101, Can you match that to the 902816 or another number
Asked on September 11, 2019 by Johnny from Livingston, TN
1 Answers

Have an answer? Click Here

A:
The Nordyne 902816 is the direct replacement of the M0012101.
Replied on September 11, 2019 by Ron from Industrial Stores
