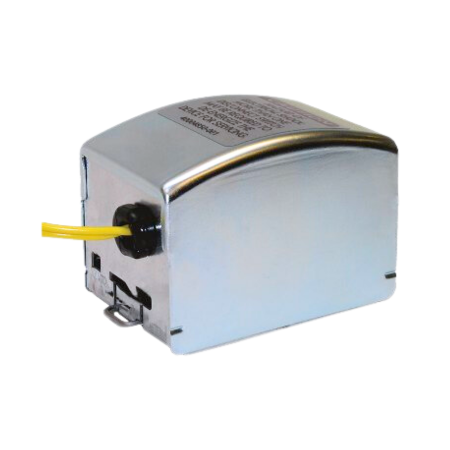

The Honeywell Resideo 40003916-511 is a normally closed replacement powerhead with an 18” lead wire that operates at 24V and 50/60 Hz power rating. This device includes a motor, housing, and two (2) mounting screws.
The powerhead features a Quick Fit button that helps the actuator snap easily to the valve body and a manual opening lever that opens the valve, even without electrical power.
The 40003916-511 is the ideal V8043 Series Motorized Zone Valves replacement. It is used with model number V8043C5033, V8043C5058, and V8043C5124 2-way motorized zone valves.
Note: If you have an old-style zone valve, you must use the Honeywell 40003918-006, 40003918-007, and 40003918-008 conversion kit.
| Voltage | 24V |
|---|---|
| Frequency | 60 Hz |
| Electrical Connection | 18" Lead |
| Valve Design | 2-Way |
| Application | Zone Valves |
| Compatible Series | V8043C Series 5000/1000 |
