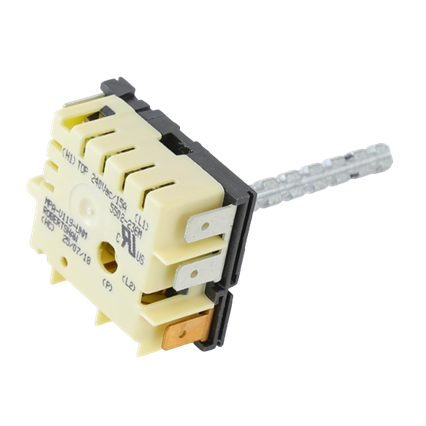

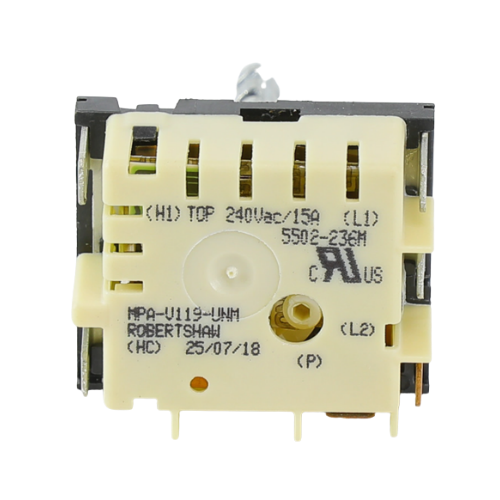

Robertshaw 5502-236M Infinite Switch 240V

Name: Robertshaw 5502-236M Infinite Switch 240V
Brand: Robertshaw
SKU: 5502-236M
Price: 47.32 USD
Availability: InStock

Images for general purposes only. Actual may be different than depicted.

Robertshaw 5502-236M Infinite Switch 240V

SKU: 5502-236M

Brand:

Rating:

Quantity	Price	Stock
3 Usually Ships 3 - 4 Weeks	$47.32 /ea	3

Add to Cart

Add to Wishlist

The 5502-236M found on this page, is a direct replacement for the following obsolete item(s):

Obsolete Product	SKU
Robertshaw 5502-236 Infinite Switch 240V	5502-236 Brand Robertshaw

Add to Cart

Add to Wishlist

Robertshaw 5502-236M Infinite Switch 240V

Be the first to write a review

Q & A: Ask the Questions, share answers

Do you have questions about this product?

Submit a New Question

Ok. I am replacing a switch on a high temp glass oven. I have the original 5502-236 switch that was on it. 1. Will the newer M model fit the existing dial I already have? Or 2. Does the newer one you recommended meet the same specs as the original 5502 I have? Naturally, I just want to replace what's there, but if I can't, i just want to make sure what I get will work. Thanks so much!

Asked on September 13, 2023 by Brandon from Factoryville pa

1 Answers

Have an answer? Click Here

The Robertshaw 5502-236 Infinite Switch is replaced by the 5502-236M. The 5502-236 is no longer available, so information is limited.

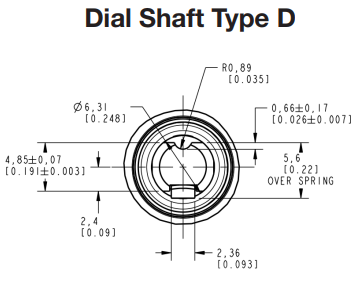

The 5502-236M features the same Dial Shaft Type D as the 5502-236, and measures 2" in length. Below is a diagram:

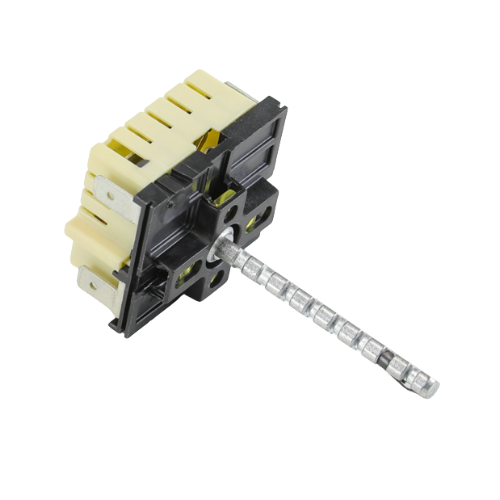

There are grooves along the length of the dial shaft, allowing you to break off sections to meet your desired length.

Both switches are rated 15 Amps at 240VAC. The spades are located in a different position
We do recommend reviewing the 5500 M Series product Installation Data prior to purchase to familiarize yourself with the product and determine its suitability for your application.

Replied on September 14, 2023 by Brian from Industrial Stores

Does this switch also come with the top dial? Thanks.

Asked on September 13, 2023 by Brandon from Factoryville pa

1 Answers

Have an answer? Click Here

The Robertshaw 5502-236M Infinite Switch 240V does not include the dial.

Please see the Robertshaw 5500-234 for the Infinite Switch 240V which includes a Black Dial. This product has a 2" inch dial shaft.

Replied on September 13, 2023 by Brian from Industrial Stores
