Robertshaw 9204H Deluxe Series Mechanical Low Voltage Thermostat

Robertshaw 9204H Deluxe Series Mechanical Low Voltage Thermostat
Images for general purposes only. Actual may be different than depicted.
Robertshaw 9204H Deluxe Series Mechanical Low Voltage Thermostat

Robertshaw 9204H Deluxe Series Mechanical Low Voltage Thermostat

SKU: 9204H
In Stock 6
Rating:
$23.96 /ea
0
$0.00
0
$0.00
0

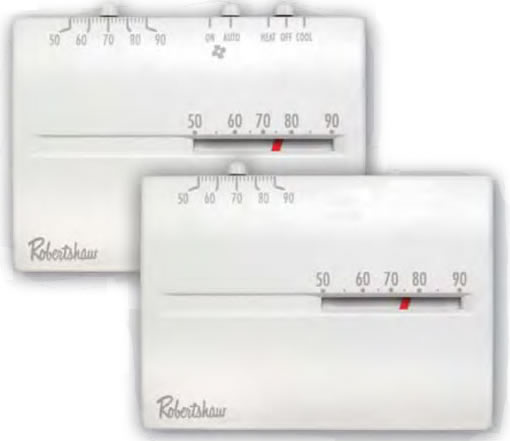

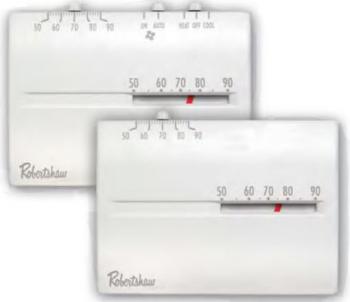

Can’t judge a thermostat by its cover? With Robertshaw® 9200 series thermostats, you can. This contemporary design is both attractive and functional. The visible temperature display is easy to read and offers accurate room temperature measurement.

But looks aren’t everything. The simple two-piece design saves time at installation. Four Robertshaw 9200 series thermostats replace over 50 competitive models, so less inventory space is needed to meet each job requirement.

When you select a Robertshaw thermostat, you’ve made the choice of an industry partner that’s been making quality products for 100 years.

  • 1-Heat System Control
  • Mercury Free - Safe. No Leveling Required
  • Heavy Duty Heat Anticipator - More anticipation settings
  • No Sub-base required
  • J-Box Compatible

Electrical Rating : 24V AC (18-30V AC) 2 amp maximum
Anticipation Rating : 0.2 to 1.6 amps
Temp. Control Range : 50°F to 90°F (10°C to 30°C)
Accuracy :  ± 2°F (± 1.0°C)
System Configurations : Gas, electric, oil, and heat pump systems
Anticipation Rating : 0.2 to 1.6 amps
Switch Action : SPST
Terminations :  Rh, W
