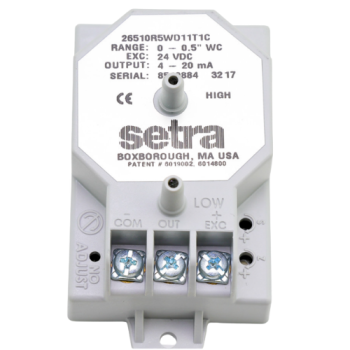

The 26510R5WD11T1C is a low differential pressure transducer with 0 to 0.5” W.C. unidirectional pressure range and 10 psi maximum line pressure.  The transducer has a 1/4" pressure connection with 24 VDC excitation and 4 to 20 mA output.  UL & CE approved and RoHS compliant.

Model 265 features ±1% FS accuracy and long-term stability using a dead-ended capacitive sensing element ideal for clean air or similar non-conducting gases.  Designed with a small footprint, an AC power option, and a fire retardant case to protect the transducer.

Suitable Transducer for the following applications:

●    Heating, Ventilating, & Air Conditioning (HVAC)
●    Energy Management Systems
●    Variable Air Volume and Fan Control (VAV)
●    Environmental Pollution Control
●    Static Duct and Clean Room Pressures

The 26510R5WD11T1C minimizes installation costs with integral mounting tabs, pressure connections on the face of the unit, and a screw terminal strip for electrical termination.
